1HP 3PH 56C 4P TENV 1800 230/460V WB Inv
Mfr # 00118NT3FVD56C-S | Wright’s # WEG 00118NT3FVD56C-S

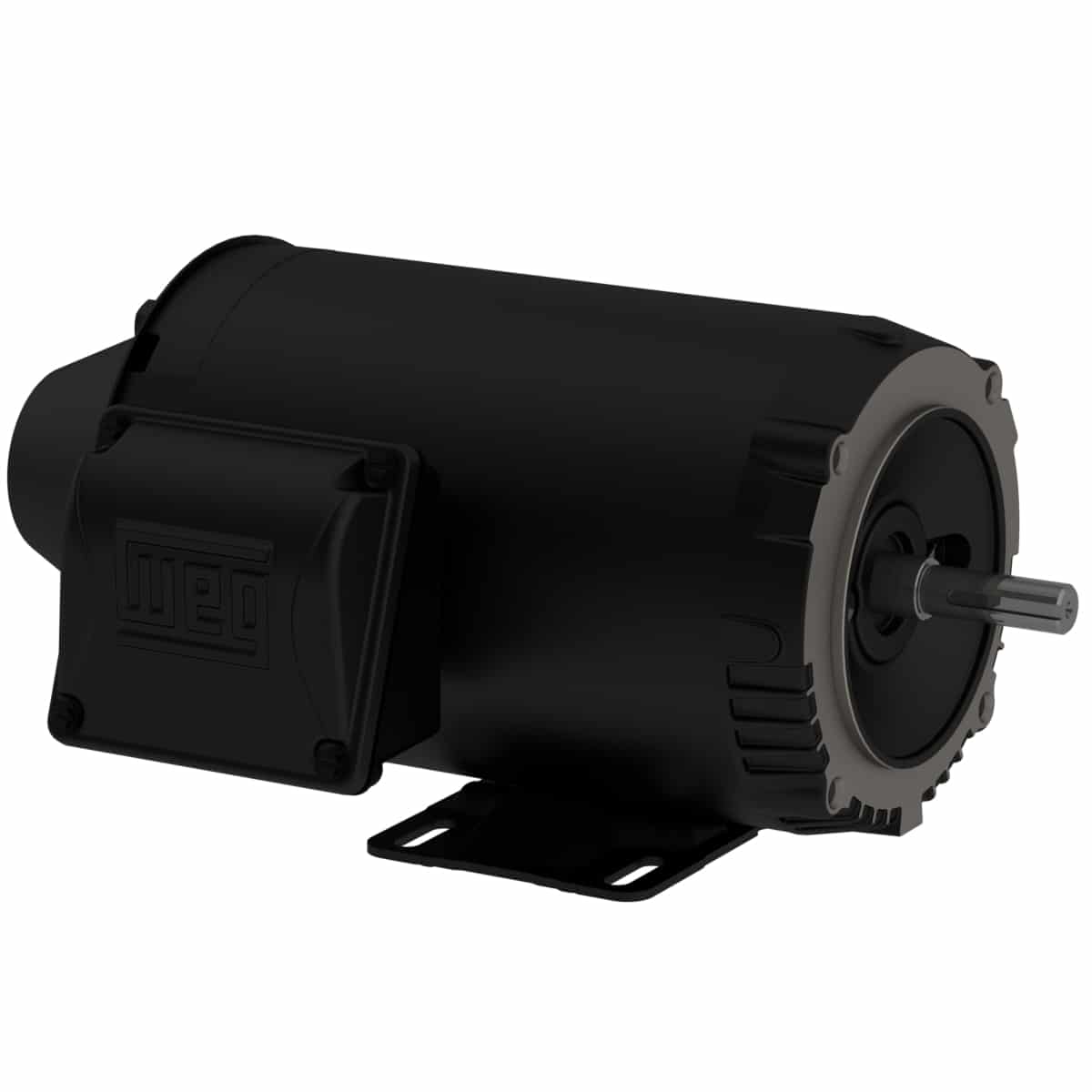

1HP Inverter Duty Motor, 3 Phase, 56C Frame, 1800 RPM, 230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Specifications
Description
Designed specifically for inverter operation for applications requiring 1000:1 constant torque turndown ratio.
• Class H insulation with Spike resistant Magnet wire and Class F Rise
• NEMA design B
• F1 Mounted (F2 convertible)
• Stainless Steel Nameplate – Laser
etched with high contrast background
• Gasketed conduit box
• Constant torque operation from 0 to base
speed (1000:1) on PWM Vector Drive
• Constant Horsepower operation up to
150% base speed
• Ready for encoder mount
• With thermostats (1 per phase)
• Special nameplate data for easy drive
set-up
• Ready for C-face brake, limited to 10 lb-ft
braking torque
