Baldor

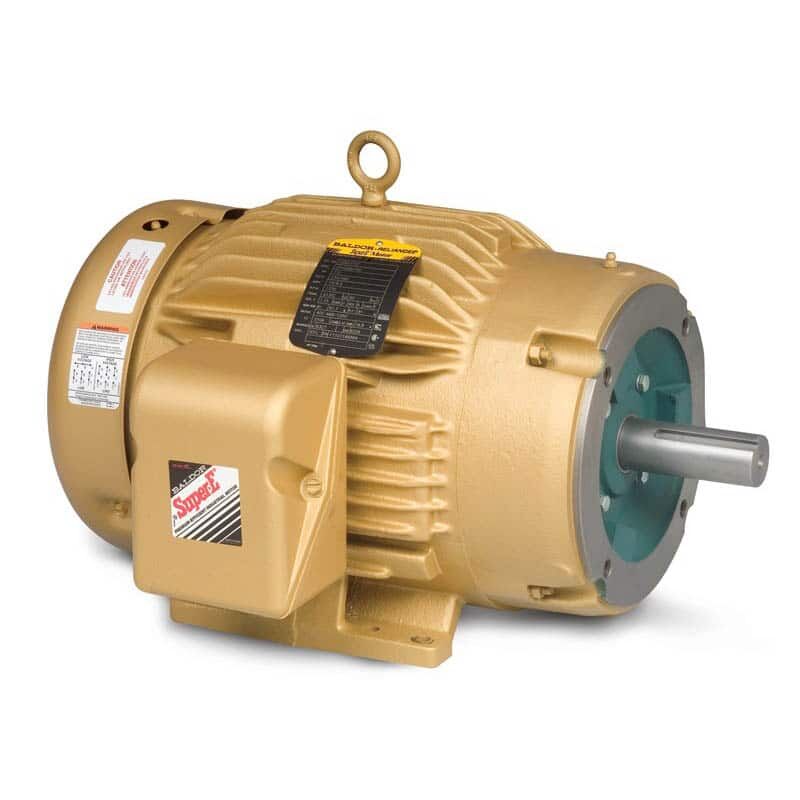

15HP 3PH 254TC 3600 TEFC WB
Mfr # CEM2394T | Wright’s # BAL CEM2394T
15HP 3-Phase General Purpose Motor, 254TC Frame, 230-460V, 3600 RPM, TEFC Enclosure, NEMA “T” Frame Dimensions
Contact Us For Pricing
Product Information
Brand Baldor
Mfr # CEM2394T
Wright's # BAL CEM2394T
Specifications
Bore Diameter 1.625"
Enclosure TEFC
Frame 254TC
Frequency 60 Hz
HP 15 HP
kW 11.19kW
Material Cast Iron
Phase 3
Rated Current 35.0
Rated Voltage 230-460
RPM 3600
Service Factor 1.15
Description
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability.
Key Features:
• Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations.
• Super-E® motors suitable for inverter use per NEMA MG1 Part 31.4.4.2
• Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
