Baldor
20HP 3PH 256TC 1800 TEFC WB
Mfr # CEM2334T | Wright’s # BAL CEM2334T

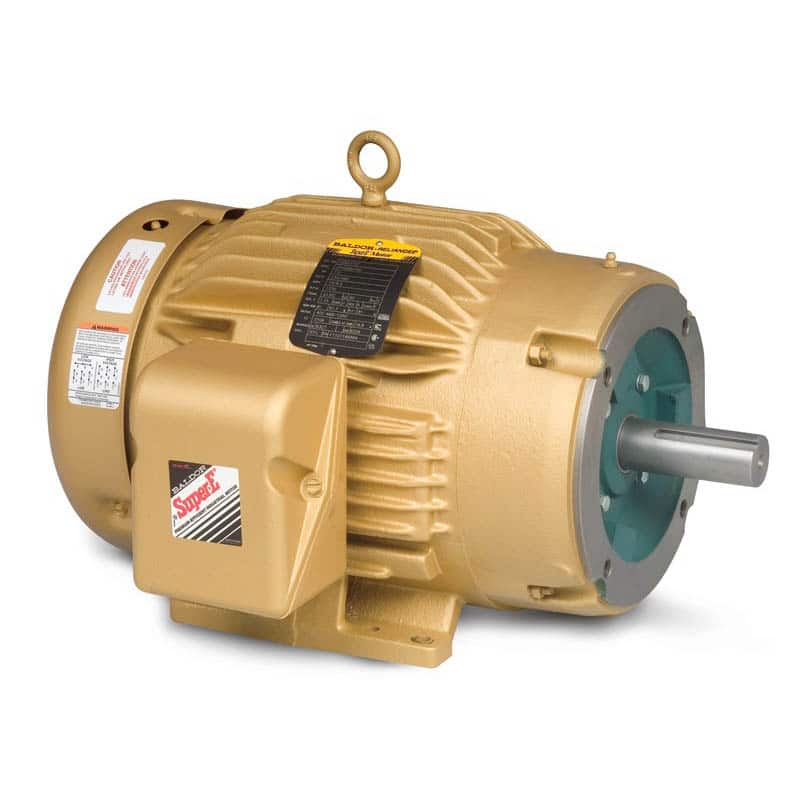

20HP 3-Phase General Purpose Motor, 256TC Frame, 230-460V, 1800 RPM, TEFC Enclosure, NEMA “T” Frame Dimensions
$3,605.47
Product Information
Brand
Baldor
Mfr #
CEM2334T
Wright's #
BAL CEM2334T
Specifications
Bore Diameter
1.625"
Enclosure
TEFC
Frame
256TC
Frequency
60 Hz
HP
20 HP
kW
14.91kW
Material
Cast Iron
Phase
3
Rated Current
48.0
Rated Voltage
230-460
RPM
1800
Service Factor
1.15
Description
Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability.
Key Features:
• Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations.
• Super-E® motors suitable for inverter use per NEMA MG1 Part 31.4.4.2
• Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
