US Motors

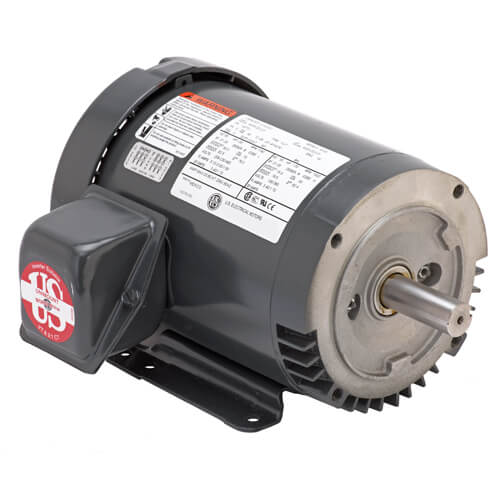

2HP 3PH 145TC 3600 TEFC 208-230/460V
Mfr # U2P1DC | Wright’s # USM U2P1DC
2HP General Purpose Unimount TEFC Motor, 3 Phase, 145TC Frame, 2 Poles, 3505 RPM, TEFC Enclosure, 208-230/460V
$509.49
Product Information
Brand
US Motors
Mfr #
U2P1DC
Wright's #
USM U2P1DC
Country of Origin
MEX
Specifications
C Dim
13.1"
Electrical Type
Polyphase
Enclosure
TEFC
Frame
145TC
Frequency
60/50 Hz
HP
2 HP
HP2
2 HP
Insulation Class
F
kW
1.49kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTED
Number of Poles
2
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
5.4-4.9/2.5
Rated Voltage
208-230/460V
RPM
3505
Service Factor
1.25
