Marathon

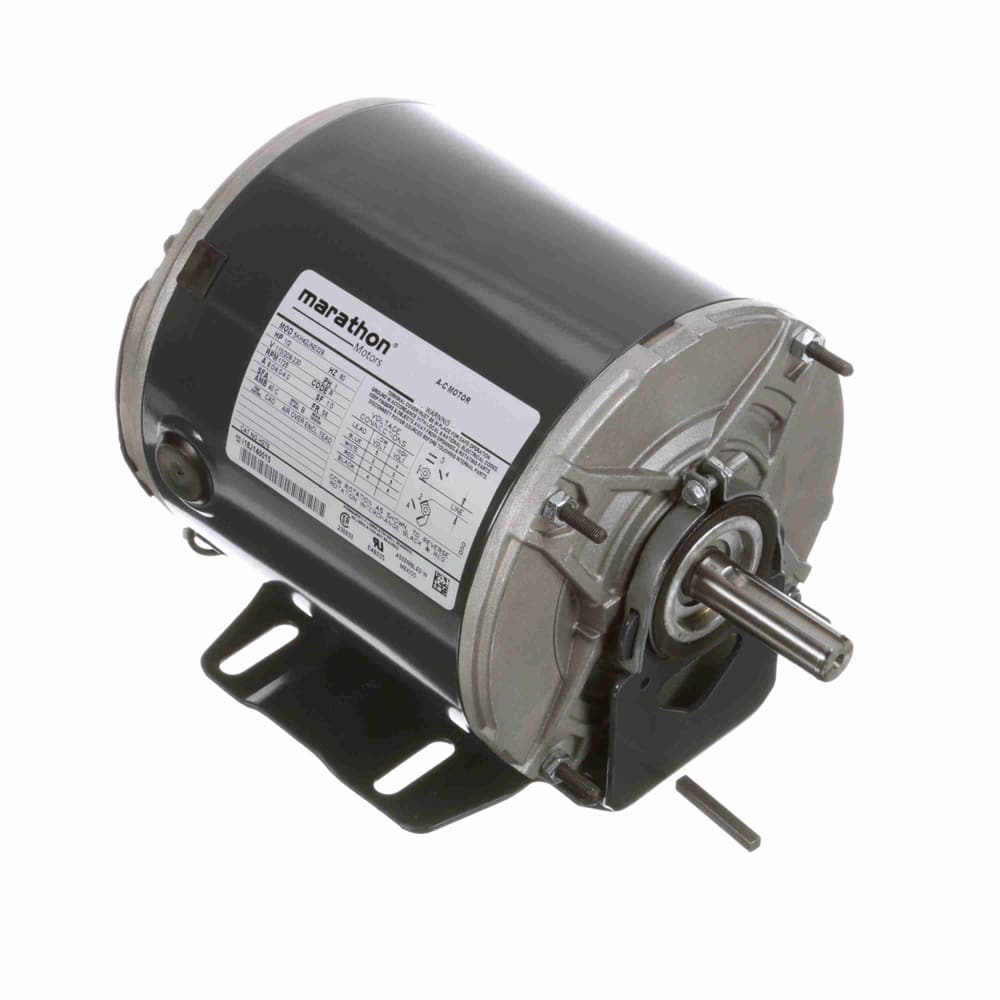

1/2HP SpP 56 4P TEAO 1725 115/208-230V RB Farm
Mfr # H276 | Wright’s # MAR H276
1/2HP Farm Duty Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Split Phase, 115/208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
H276
Wright's #
MAR H276
Country of Origin
MEX
Specifications
C Dim
10.05"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
61.7
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
8.0,4.0-4.0
Rated Voltage
115/208-230
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.63"
Speed
1725
Starting Method
Description
Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.
1/2HP Farm Duty Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Split Phase, 115/208-230V, Totally Enclosed Air Over Enclosure
