Leeson

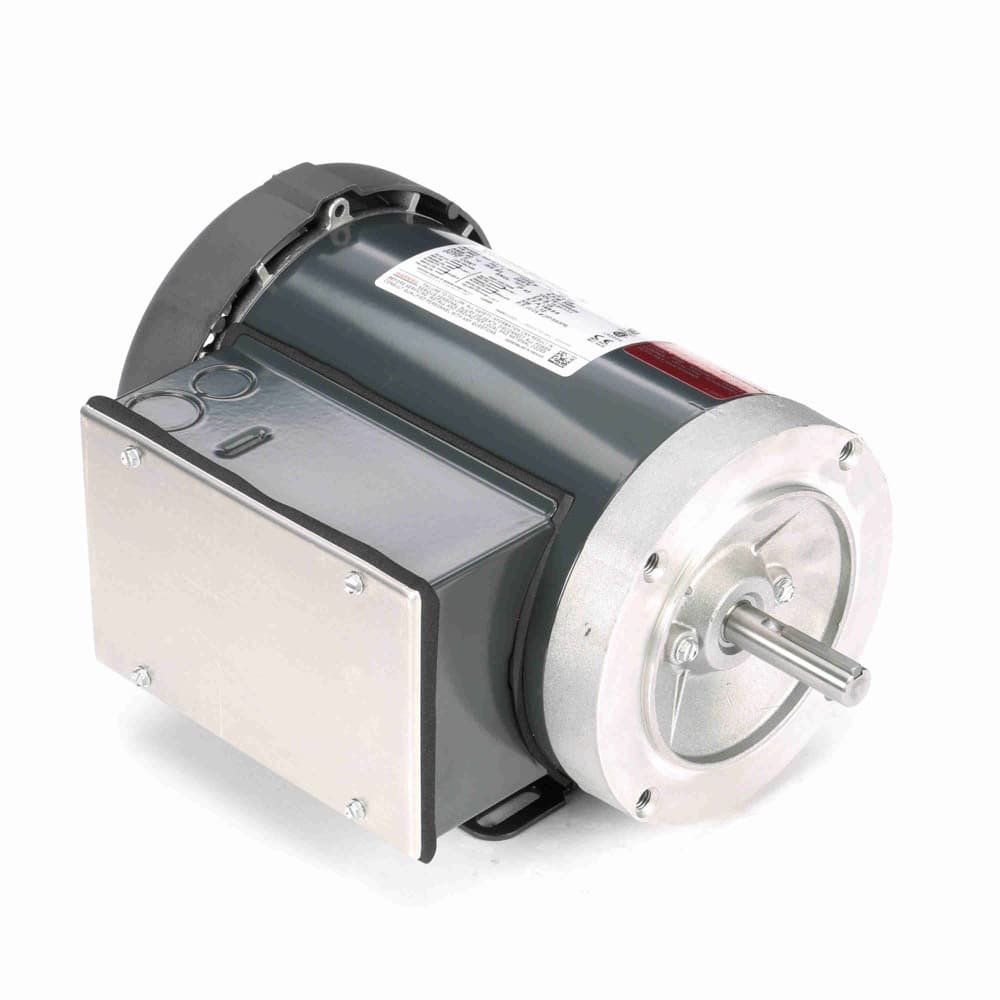

1.50HP 1PH 56C 2P TEFC 3450 115/208-230V WB
Mfr # D314 | Wright’s # LSN D314
1-1/2HP General Purpose Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
D314
Wright's #
LSN D314
Country of Origin
MEX
Specifications
C Dim
12.82"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
TEFC
Full Load Efficiency
78.5
Frame
56C
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Bolt-on Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
14.2/7.7-7.1
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power. specifications
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Capacitor start design optimizes motor torque and efficiency performance.
