Leeson

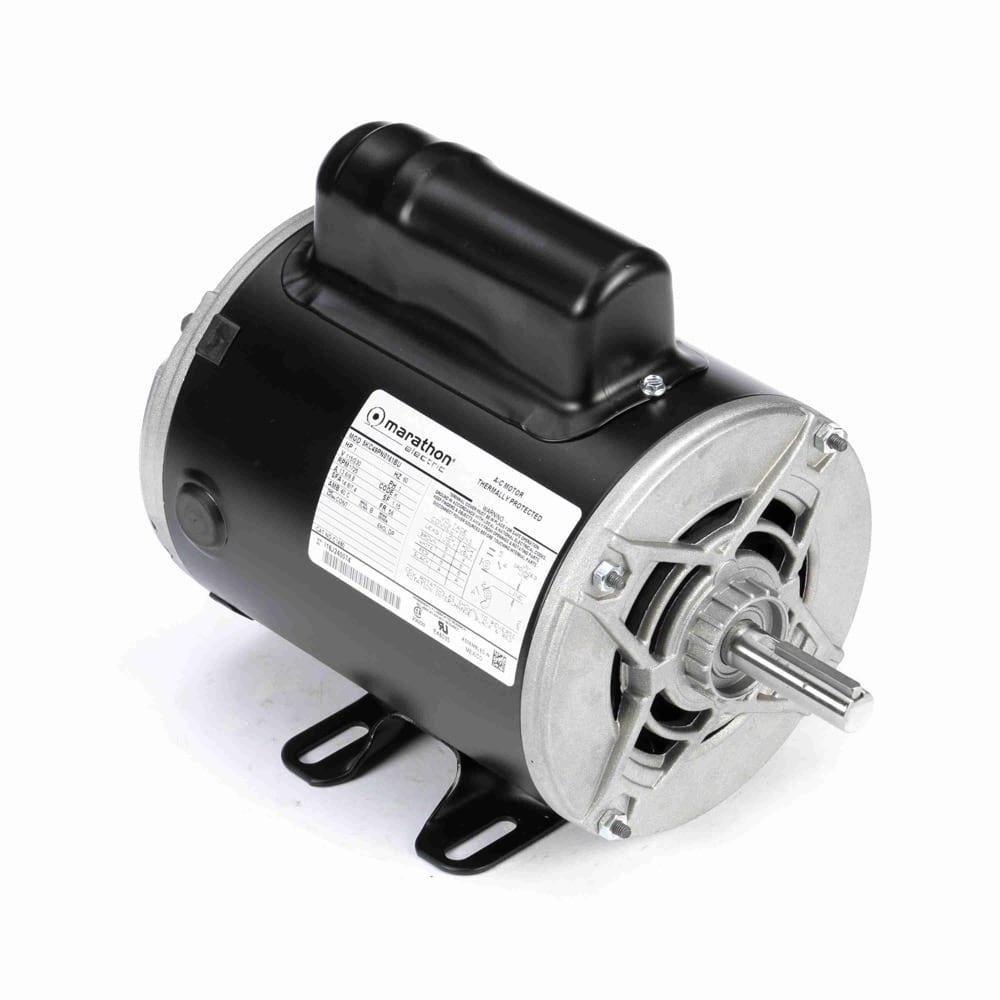

1HP 1PH 56 4P DP 1725 115/230V MOL PW
Mfr # C1480 | Wright’s # LSN C1480
1HP Pressure Washer Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, DP Enclosure, Manual Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
C1480
Wright's #
LSN C1480
Country of Origin
MEX
Specifications
C Dim
11.38"
Electrical Type
Capacitor Start Induction Run
Enclosure
DP
Full Load Efficiency
68
Frame
56
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
13.6,6.8
Rated Voltage
115/230
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.63"
Speed
1725
Starting Method
Description
Thermal protection prevents dangerous overheating that causes motor failure.
Heavy-duty, rolled steel construction ensures motor durability.
Double-shielded bearings extend the service life of the motor.
High service factor rating (as noted).
