Genteq

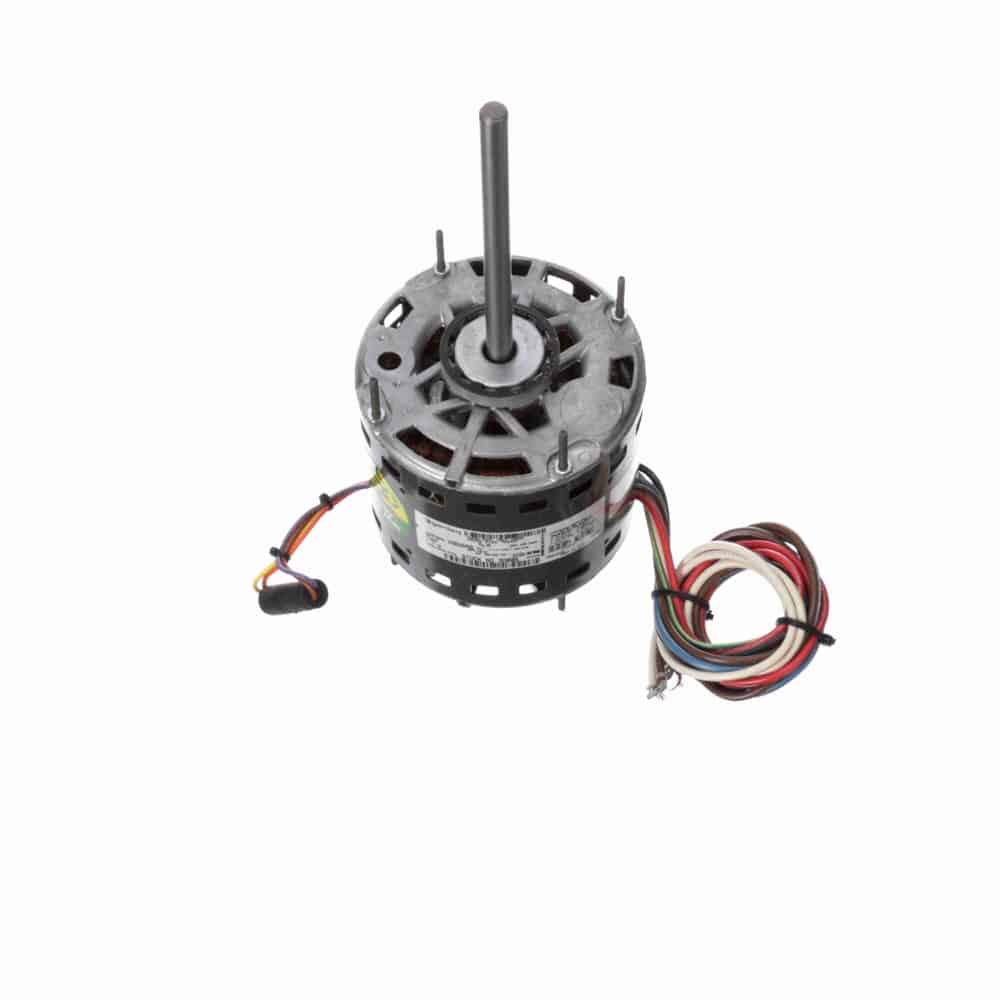

1/3HP PSC 5.6″ OAO 3spd 1075 REV 460V 5uF BM
Mfr # 3D006 | Wright’s # GEN 3D006
1/3HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 460V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand Genteq
Mfr # 3D006
Wright's # GEN 3D006
Specifications
C Dim 12.39"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6"
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 6
Number of Speeds 3
Overload Protection Thermally Protected
Phase 1
Rated Current 1.10
Rated Voltage 460
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatІ” Leads
Extended Clampbolts, Mounting Holes in shell, Belly Band Mount (Belly Band Not Included)
