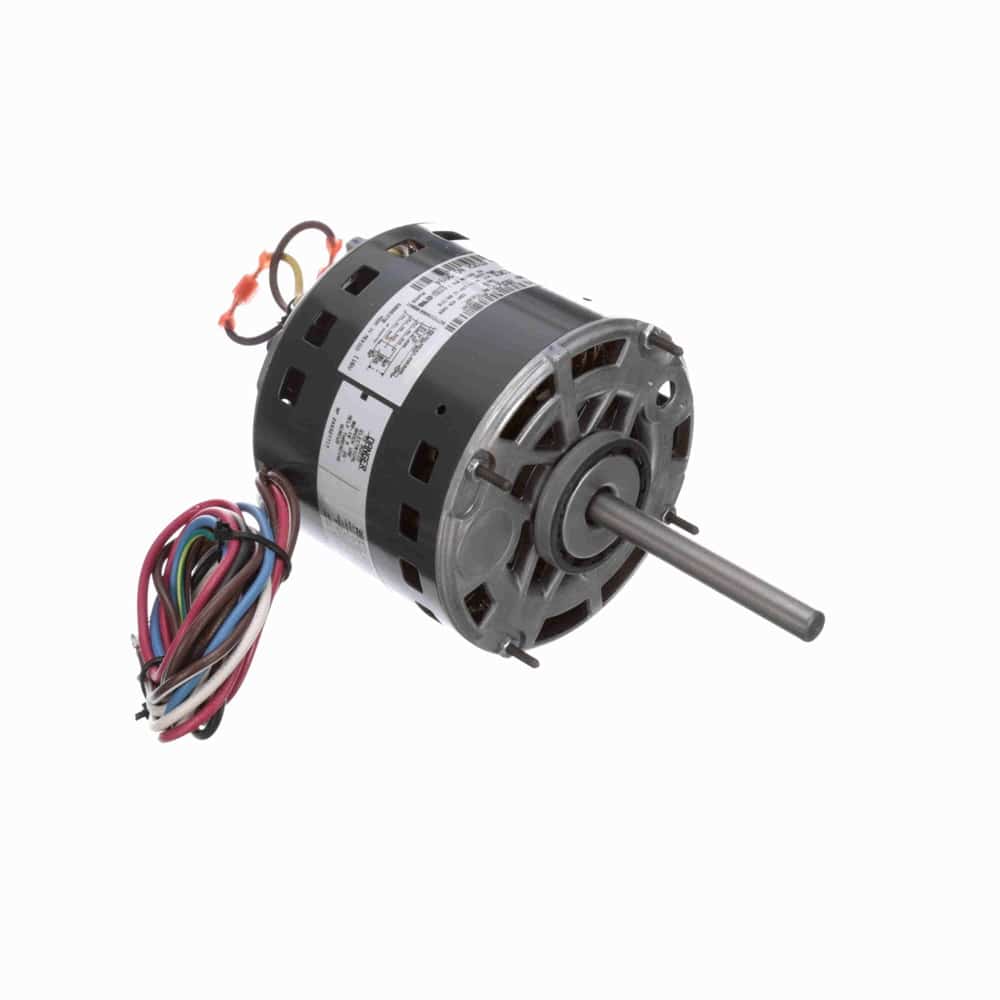

Genteq
1/3HP PSC 5.6″ OAO 3spd 1625 CWSE 115V 15uF BM
Mfr # 3994 | Wright’s # GEN 3994
1/3HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1625 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Genteq
Mfr #
3994
Wright's #
GEN 3994
Specifications
C Dim
8.8"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.90
Rated Voltage
115
Rotation
Counterclockwise
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Extended Clampbolts, Belly Band Mount (Belly Band Not Included)
120V
