Fasco

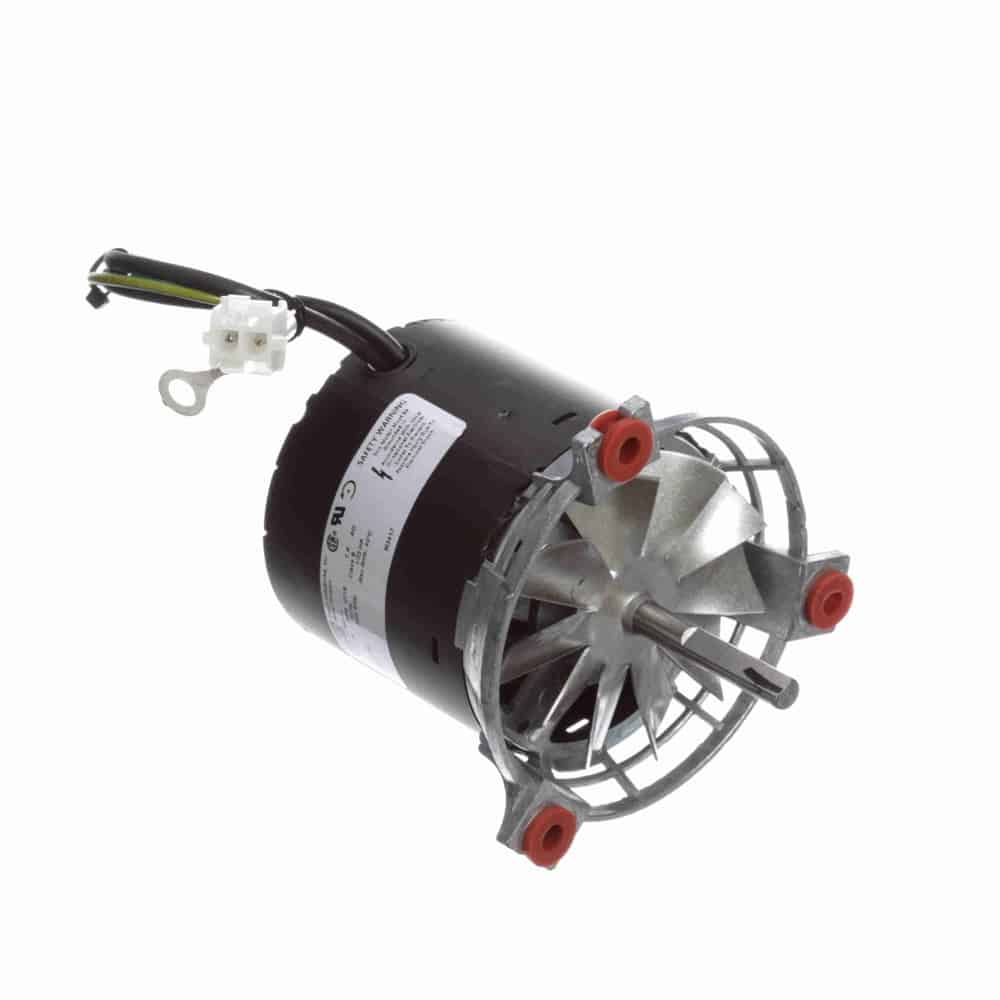

1/25HP ShP 3.3″ 3000 CCWSE 115V
Mfr # D1193 | Wright’s # FAS D1193
1/25HP Draft Inducer Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1193
Wright's #
FAS D1193
Country of Origin
MEX
Specifications
C Dim
5.54"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.04 HP
HP2
1/25 HP
Insulation Class
B
kW
0.03kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.2
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
3000
Shaft Diameter
0.313"
Starting Method
Description
Draft Inducer Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatl” Leads with Terminal Housing
Motor-Blower Bracket
120V
