Elco

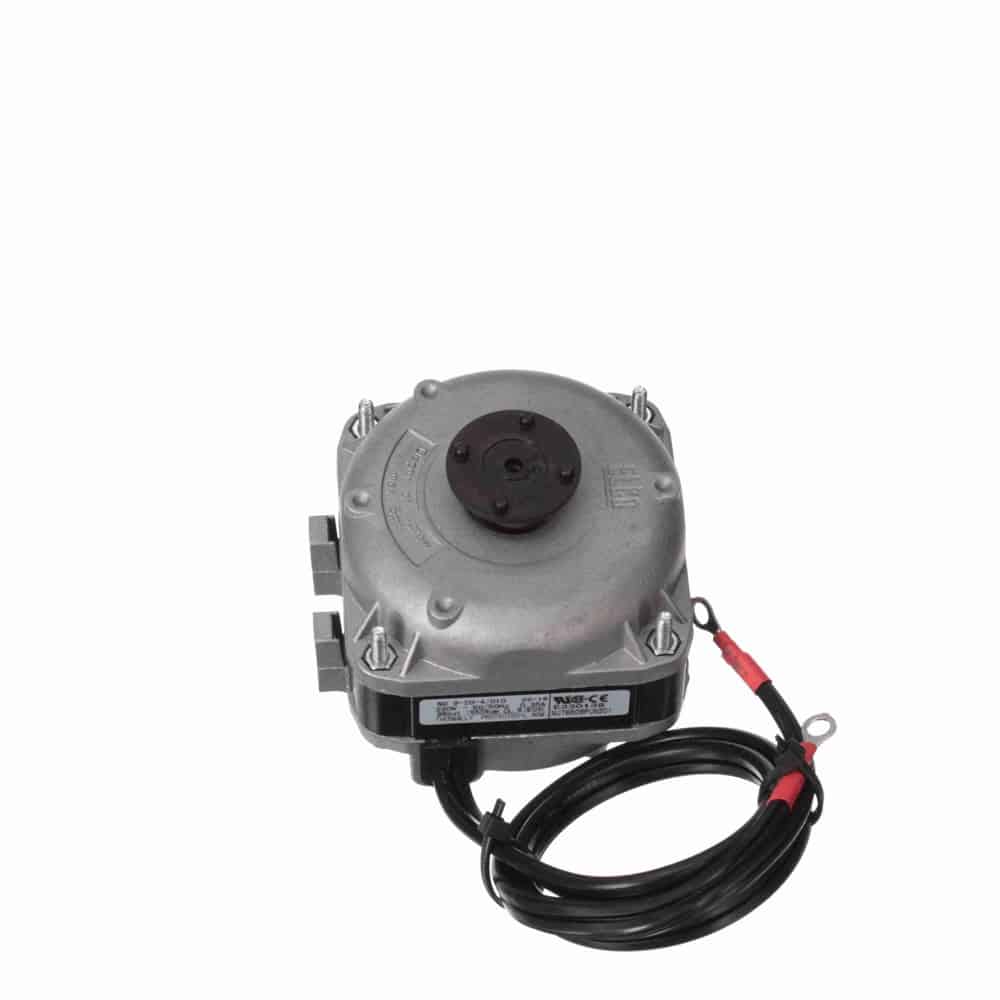

9W ShP 1550 CWLE 230V 0.35A
Mfr # EC9W230 | Wright’s # ELC EC9W230
9 Watt Refrigeration Motor, 1 Phase, Unit Bearing Frame, 1550 RPM, Shaded Pole, 230V, TEAO Enclosure, Aluminum
$65.79
Product Information
Brand Elco
Mfr # EC9W230
Wright's # ELC EC9W230
Specifications
C Dim 3.05"
Electrical Type Shaded Pole
Enclosure TEAO
Frame UNIT BEARING
Frequency 60 Hz
Insulation Class B
Material Aluminum
Max Ambient 40°C
Number of Poles 4
Overload Protection Thermostat
Phase 1
Rated Current 0.35
Rated Voltage 230
Rotation Counterclockwise Shaft End
RPM 1550
Shaft Diameter 0.275"
Speed 1550
Starting Method
Watt 9
Description
ELCO – Refrigeration Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air OVER
Class B Insulation
Sleeve Bearing
Shaft with 4 End-StudsϽ-23″ Leads with Ring Terminals
One Foot, Front Shroud, 3 Tapped Rear Holes
9 Watt
230V
1800RPM
