Century
1/4HP PSC 48Y TE 1625 CCWSE 380-420/460V 4uF-inc OEM
Mfr # OTC1864 | Wright’s # CEN OTC1864

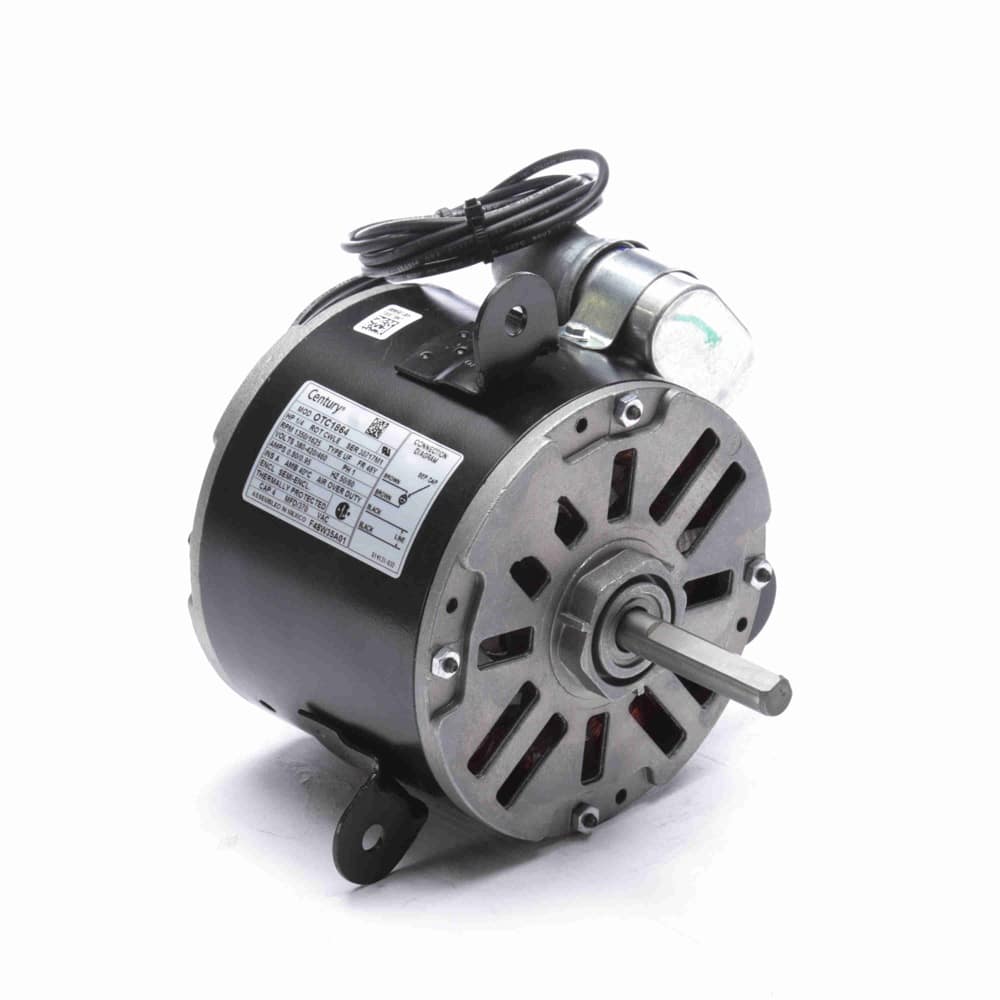

1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 380-420/460V, TEAO Enclosure
$220.57
Product Information
Brand
Century
Mfr #
OTC1864
Wright's #
CEN OTC1864
Country of Origin
MEX
Specifications
C Dim
7.56"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
A
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
0.80/0.95
Rated Voltage
380-420/460
Rotation
Clockwise Lead End
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1350/1625
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
Class A Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with Double FlatsЏ” Leads
Lug Mount, Hex Mounting Hub Shaft end and Lead End
1/4HP OEM Replacement Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 380-420/460V, TEAO Enclosure
