Century

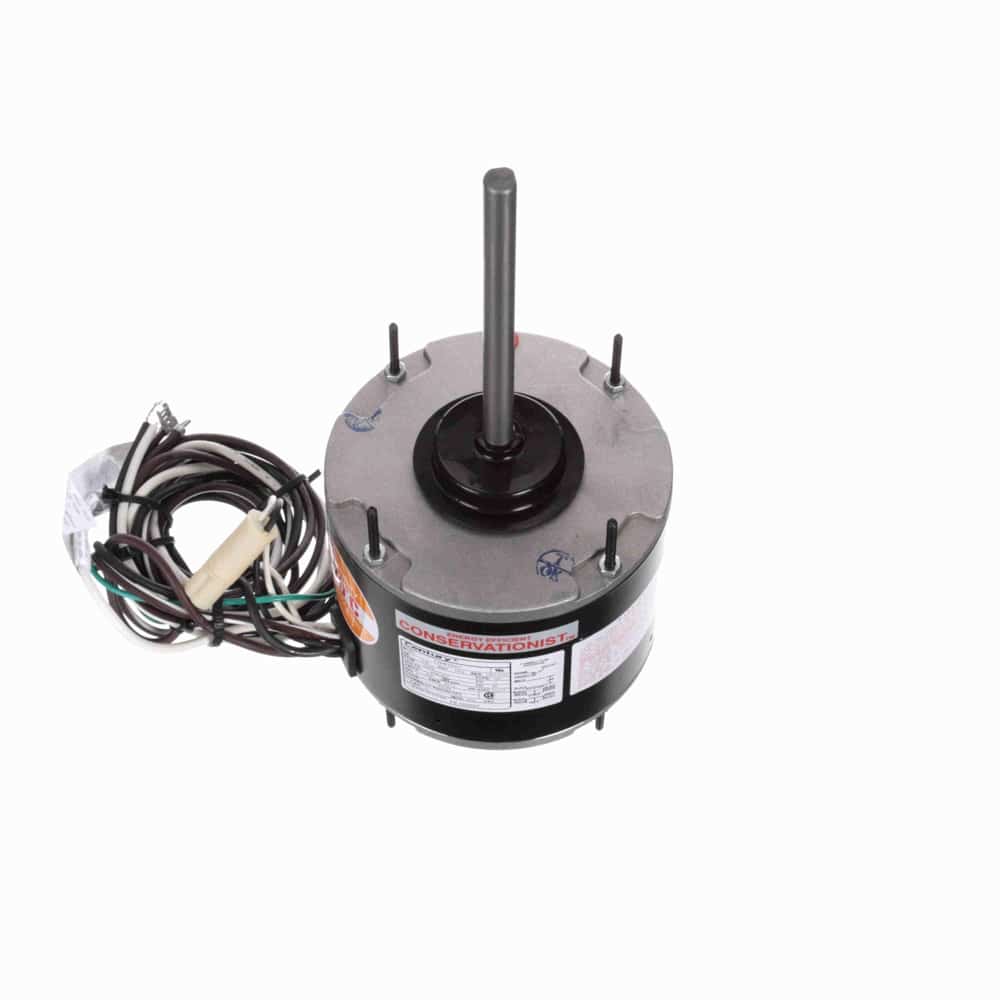

1/4HP PSC 5.6″ TE 1075 208-230V 5uF CF
Mfr # FE1026SF | Wright’s # CEN FE1026SF
1/4HP Condenser Fan Motor, 1 Phase, 48 Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure
$123.11
Product Information
Brand
Century
Sub-Brand
HEATMASTER®
Mfr #
FE1026SF
Wright's #
CEN FE1026SF
Country of Origin
MEX
Specifications
C Dim
11.74"
Electrical Type
Permanent Split Capacitor
Enclosure
TEAO
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
F
kW
0.19kW
Material
Rolled Steel
Max Ambient
70°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
