Century

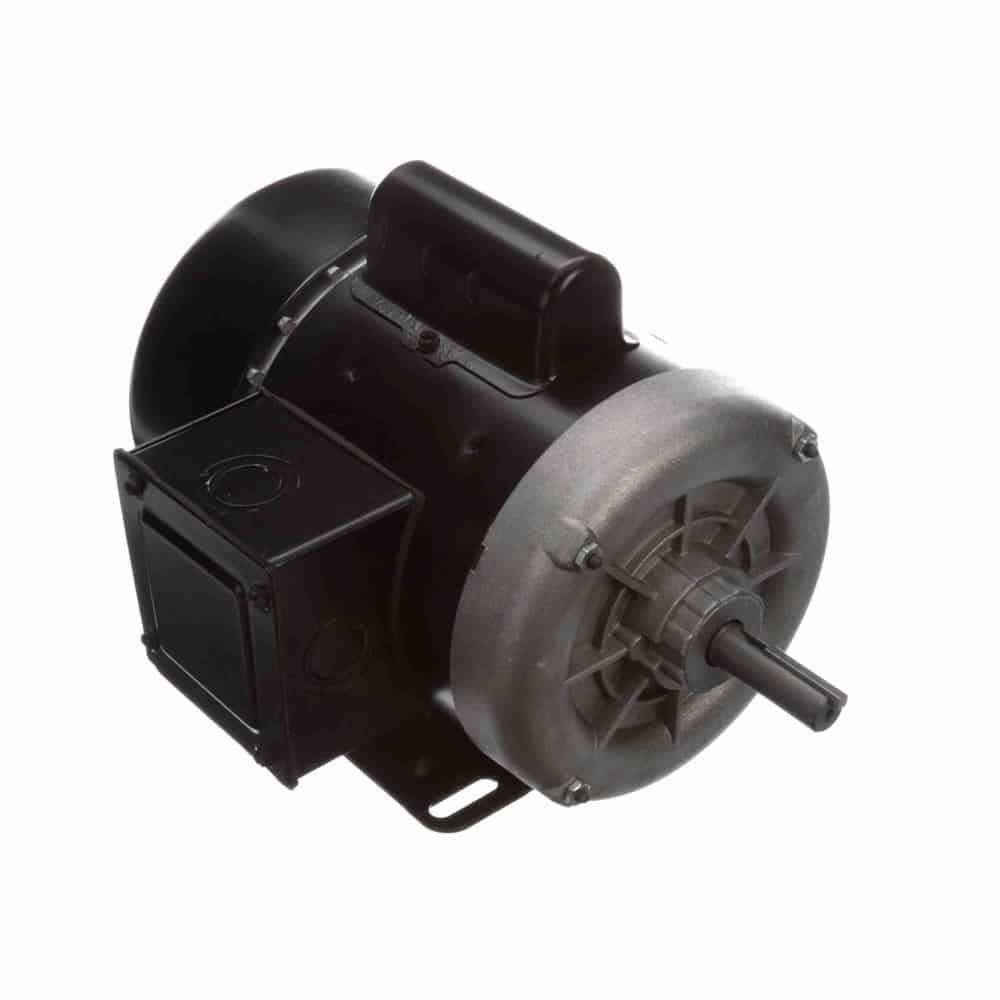

0.5HP 1PH 56 4P TEFC 1725 115/208-230V AOL
Mfr # C613V1 | Wright’s # CEN C613V1
0.5HP 1-Phase General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Century
Mfr #
C613V1
Wright's #
CEN C613V1
Country of Origin
MEX
Specifications
C Dim
12.83"
Electrical Type
Capacitor Start Induction Run
Enclosure
TEFC
Full Load Efficiency
74
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
0.5 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
6.4/3.4-3.2
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Heavy gauge steel construction
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
0.5HP 1-Phase General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, TEFC Enclosure
