Worldwide

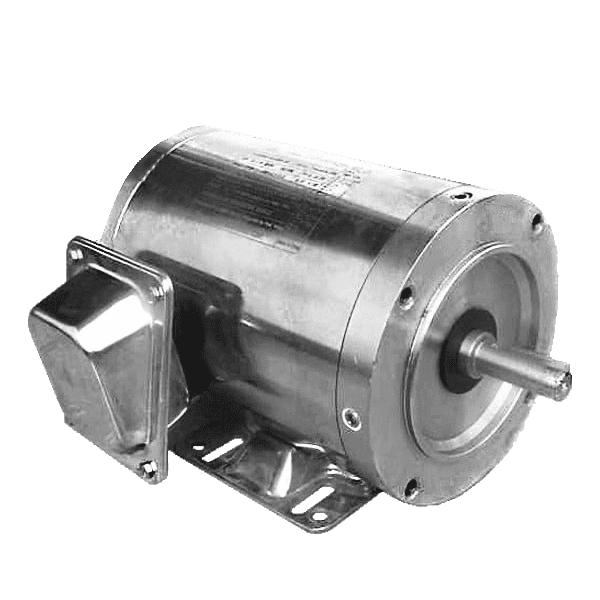

1/3HP 3PH 56C TENV 1800 230/460V NB WB SS WD
Mfr # WSSNV13-18-56CB | Wright’s # WWE WSSNV13-18-56CB
1/3HP Stainless Steel Washdown Motor, 3 Phase, 56C Frame, 1800 RPM, 230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand Worldwide
Mfr # WSSNV13-18-56CB
Wright's # WWE WSSNV13-18-56CB
Country of Origin USA
Specifications
Enclosure TENV
Full Load Efficiency 82.5
Frame 56C
HP 0.33 HP
HP2 1/3 HP
Insulation Class F
kW 0.25kW
Material Stainless Steel
Mounting Type C-Face with Removable Base
Phase 3
Rated Current 0.7
Rated Voltage 230/460
RPM 1800
Service Factor 1.15
Description
– 1800 RPM
– 230/460 Volt
– Totally Enclosed Non-Ventilated (TENV) Enclosure
– IP56 Protection
– 1.15 SF
– Class F Insulation
– 304 Stainless Steel Frame, End Bracket and Junction Box
– Stainless Steel Shaft
– Anti-Rust Film Applied to Rotor
– Double Lip Seals with an Additional Shaft Slinger on the Drive-End
– O-Ring Installed on Endbells to Prevent Moisture Intrusion
– Stainless Steel Cord Connector Included
