7-1/2HP 3PH 213TC TEFC 3600 230/460V WB SS WD
Mfr # SSPE7.5-36-213TC | Wright’s # WWE SSPE7.5-36-213TC

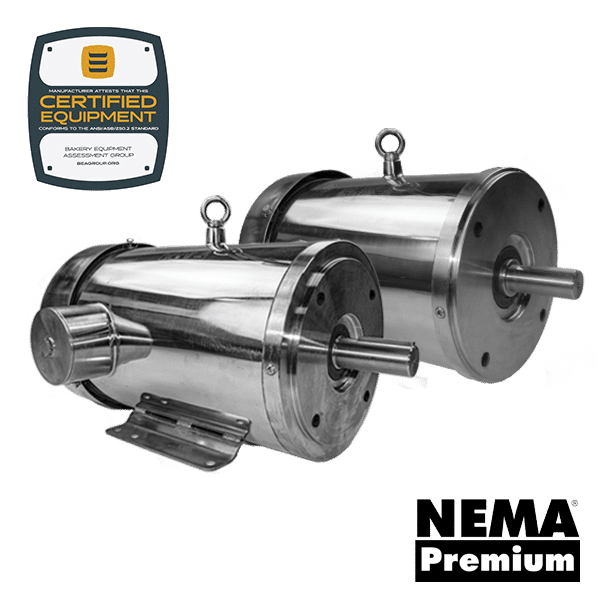

7-1/2HP Stainless Steel Washdown Motor, 3 Phase, 213TC Frame, 3600 RPM, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Specifications
Description
– 230/460 Volt, 60 Hz
– Round Welded Junction Box with Epoxy Potted Leads
– 304 Stainless Steel Frame, End Bracket, Junction Box (F1), and Hardware
– Stainless Steel Shaft and Key
– IP69K Protection
– BEAG Certified – Formerly BISSC
– Class F Insulation with Class B Temperature Rise
– NEMA Premium Efficiency
– NEMA Design B
– Continuous Duty
– 1.15 SF
– Suitable for 50 Hz , 190/380V, 1.15 SF (Derate in HP)
– Lip Seal on DE and ODE
– Double Sealed Bearings
– Inverter Duty – 10:1 Constant Torque (CT) / 20:1 Variable Torque (VT)
– Factory Certified Class 1 Division 2 Groups A, B, C, D – Temperature Code T2B
– Ambient -20°C to +40°C, Altitude up to 3300 Feet Above Sea Level (FASL)
– Bi-directional Rotation
