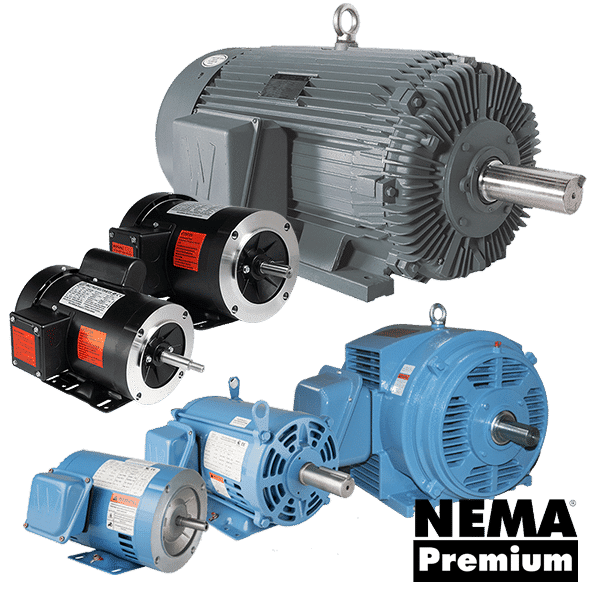

75HP 3PH 444T TEFC 900 230/460V WB
Mfr # PEWWE75-9-444T | Wright’s # WWE PEWWE75-9-444T
75HP General Purpose Motor, 3 Phase, 444T Frame, 900 RPM, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Worldwide
Mfr # PEWWE75-9-444T
Wright's # WWE PEWWE75-9-444T
Country of Origin USA
Specifications
Electrical Type Capacitor Start Capacitor Run
Enclosure TEFC
Full Load Efficiency 93.6
Frame 444T
HP 75 HP
HP2 75 HP
Insulation Class F
kW 55.93kW
Mounting Type Rigid Base
Phase 3
Rated Current 101
Rated Voltage 230/460
RPM 900
Service Factor 1.15
Description
– 230/460 Volt
– Totally Enclosed Fan Cooled (TEFC) Enclosure
– IP55 Protection
– 1.15 SF
– Class F Insulation
– C-Face with Feet
– Premium Efficiency
– Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)
– Spike Resistant Wire, per NEMA MG-1, Part 31
– Class 1, Division 2, Groups A, B, C, D
– Suitable for 50 Hz, 200/400V with 1.0 SF
