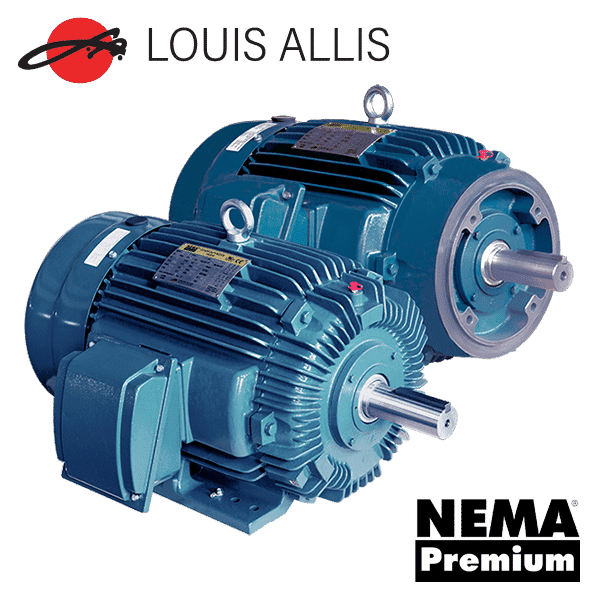

5HP 3PH 184T TEFC 1800 230/460V WB
Mfr # LAM5-18-184T | Wright’s # WWE LAM5-18-184T
5HP General Purpose Motor, 3 Phase, 184T Frame, 1800 RPM, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Worldwide
Mfr # LAM5-18-184T
Wright's # WWE LAM5-18-184T
Country of Origin USA
Specifications
Enclosure TEFC
Full Load Efficiency 89.5
Frame 184T
HP 5 HP
HP2 5 HP
Insulation Class F
kW 3.73kW
Material Rolled Steel
Mounting Type Rigid Base
Phase 3
Rated Current 6.2
Rated Voltage 230/460
RPM 1800
Service Factor 1.25
Description
– Totally Enclosed Fan Cooled (TEFC) Enclosure
– IP55 Protection
– Class F insulation
– NEMA Premium Efficiency
– Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)
– Class 1 Division 2 Groups A,B,C,D
– Double Vacuum Pressure Impregnation (VPI) Treatment
– Heavy Gauge Rolled Steel Fan Cover
– All Frames Double Punched
– Metal Clad V-Ring on DE, Oil Seal on ODE
