WEG

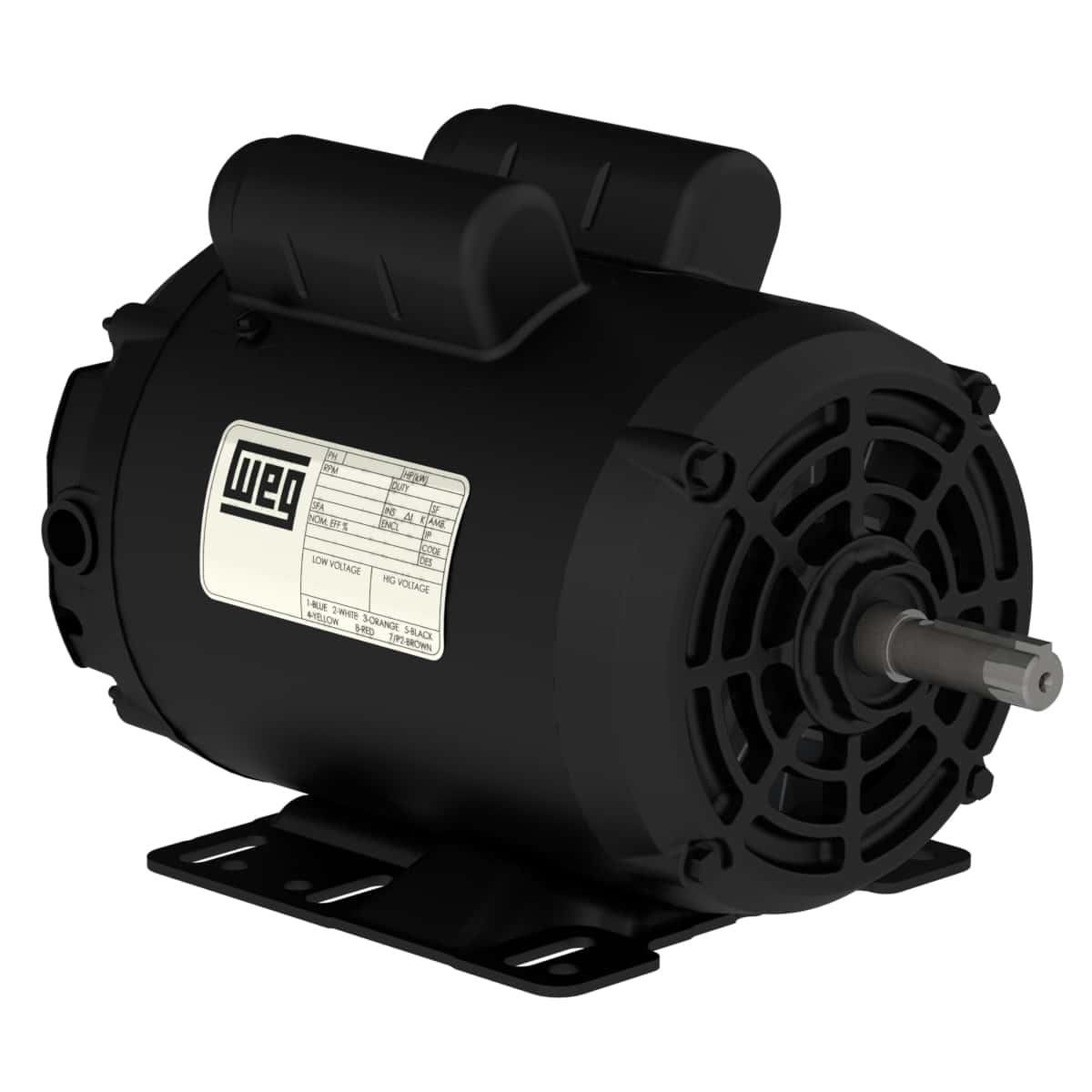

1/2HP 1PH 56 2P ODP 3600 115/208-230V MOL CM
Mfr # .5036OS1BCDW56-S | Wright’s # WEG .5036OS1BCDW56-S
0.5HP Compressor Motor, 1 Phase, 56 Frame, 3600 RPM, 115/208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand WEG
Mfr # .5036OS1BCDW56-S
Wright's # WEG .5036OS1BCDW56-S
Country of Origin BRA
Specifications
C Dim 9.866"
Efficiency Standard Efficiency
Enclosure ODP
Frame 56
HP 0.5 HP
HP2 1/2 HP
kW 0.37kW
Material Rolled Steel
Number of Poles 2
Overload Protection Manual Overload Protection
Phase 1
Rated Current 3.1
Rated Voltage 115/208-230
RPM 3600
Description
These high quality motors are designed to meet the high torque requirements of air compressor loads. Special electrical and mechanical design guarantees reliable service and longer motor life.
• Class B insulation
• Start Capacitor
• Ball bearings
• Manual Reset Thermal Overload Protection
• High starting torque
• Rolled Steel frames have the base seam-welded to the frame for heavy duty use.
