WEG
1/6HP 1PH 48YZ 4P ODP 1800 SpP 115V
Mfr # .1618OS1ASPRB48YZ-SP | Wright’s # WEG .1618OS1ASPRB48YZ-SP

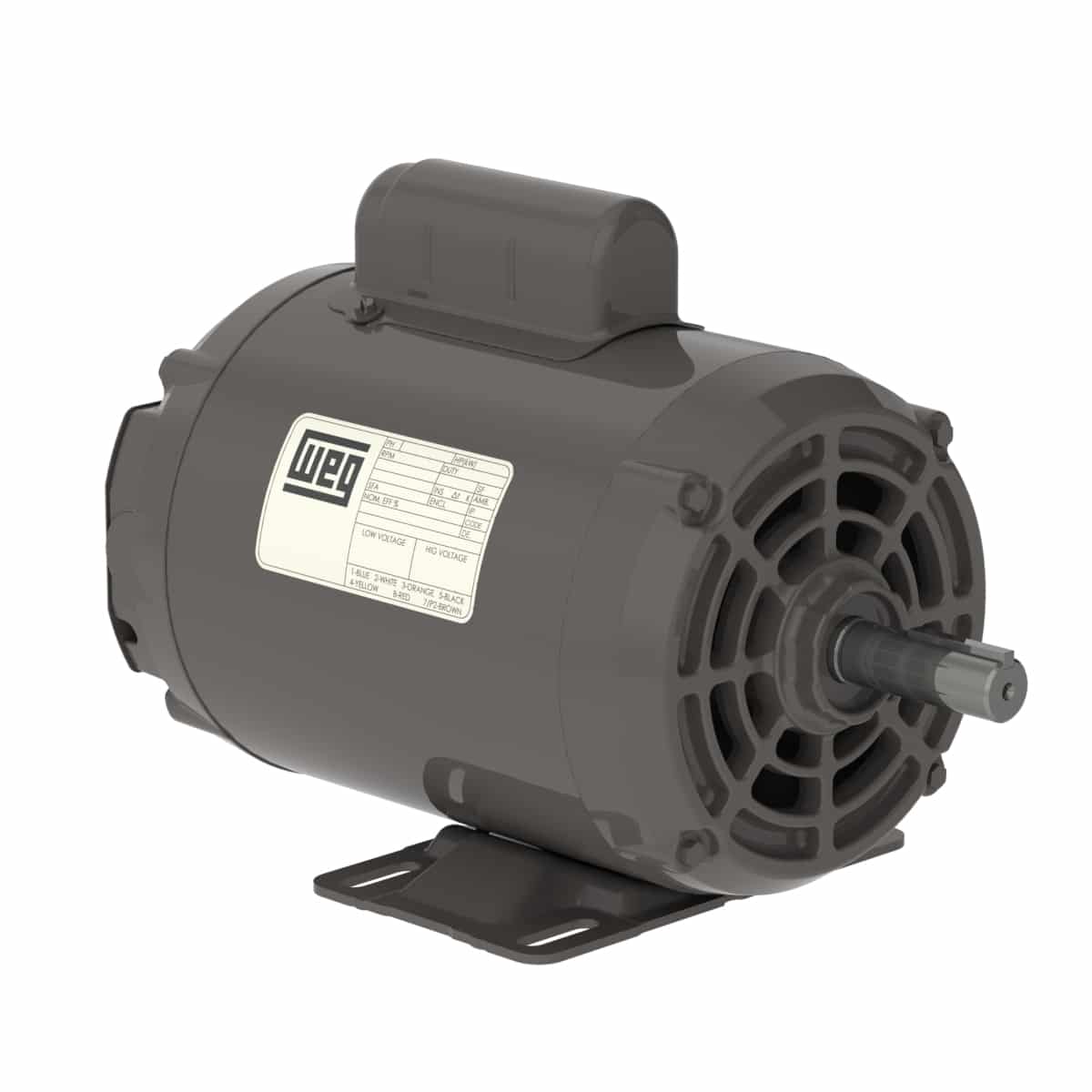

0.16HP General Purpose Motor, 1 Phase, 48YZ Frame, 1800 RPM, Split Phase, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
WEG
Mfr #
.1618OS1ASPRB48YZ-SP
Wright's #
WEG .1618OS1ASPRB48YZ-SP
Specifications
Efficiency
Standard Efficiency
Enclosure
ODP
Frame
48YZ
HP
0.16 HP
HP2
1/6 HP
kW
0.12kW
Material
Rolled Steel
Number of Poles
4
Phase
1
Rated Voltage
115
RPM
1800
Description
High Starting Torque makes these motors ideal for a wide range of applications. Standard features include:
• Class F insulation
• Ball bearings
• F1 mounted
• V-ring seals
• NPT threaded holes in terminal box
