WEG
75HP 3PH 365T 4P ODP 1800 208-230/460V SG CI
Mfr # 07518OT3E365T-W40G | Wright’s # WEG 07518OT3E365T-W40G

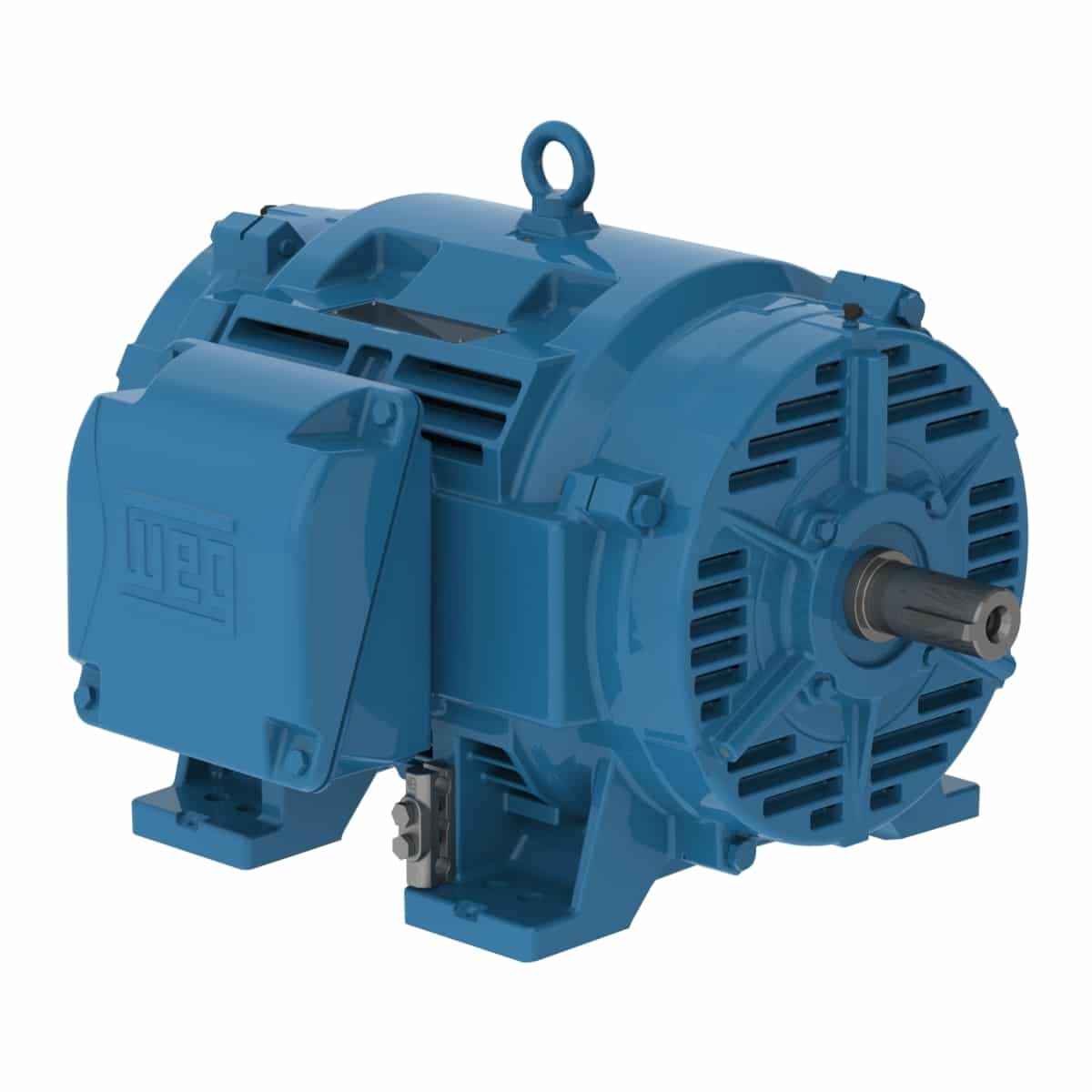

75HP General Purpose Motor, 3 Phase, 365T Frame, 1800 RPM, 208-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
WEG
Mfr #
07518OT3E365T-W40G
Wright's #
WEG 07518OT3E365T-W40G
Specifications
C Dim
29.725"
Efficiency
NEMA Premium®
Enclosure
ODP
Frame
365T
HP
75 HP
HP2
75 HP
kW
55kW
Material
Cast Iron
Number of Poles
4
Phase
3
Rated Current
85.5
Rated Voltage
208-230/460
RPM
1800
Description
All Cast Iron Construction, including Terminal Box and Fan Cover. Solid feet for reduced vibration levels and impact absorption. Optimized ventilation system for cooler operation and extended life. High Grade FC200 cast iron provides superior mechanical strength and heat dissipation. Four Bolt Conduit Cover with glued Neoprene Gasket. Impregnation Resin and magnet wire are insulation class H.
