WEG
1.5HP 3PH 145T 4P ODP 1800 208-230/460V RS
Mfr # 00158OT3E145T-S | Wright’s # WEG 00158OT3E145T-S

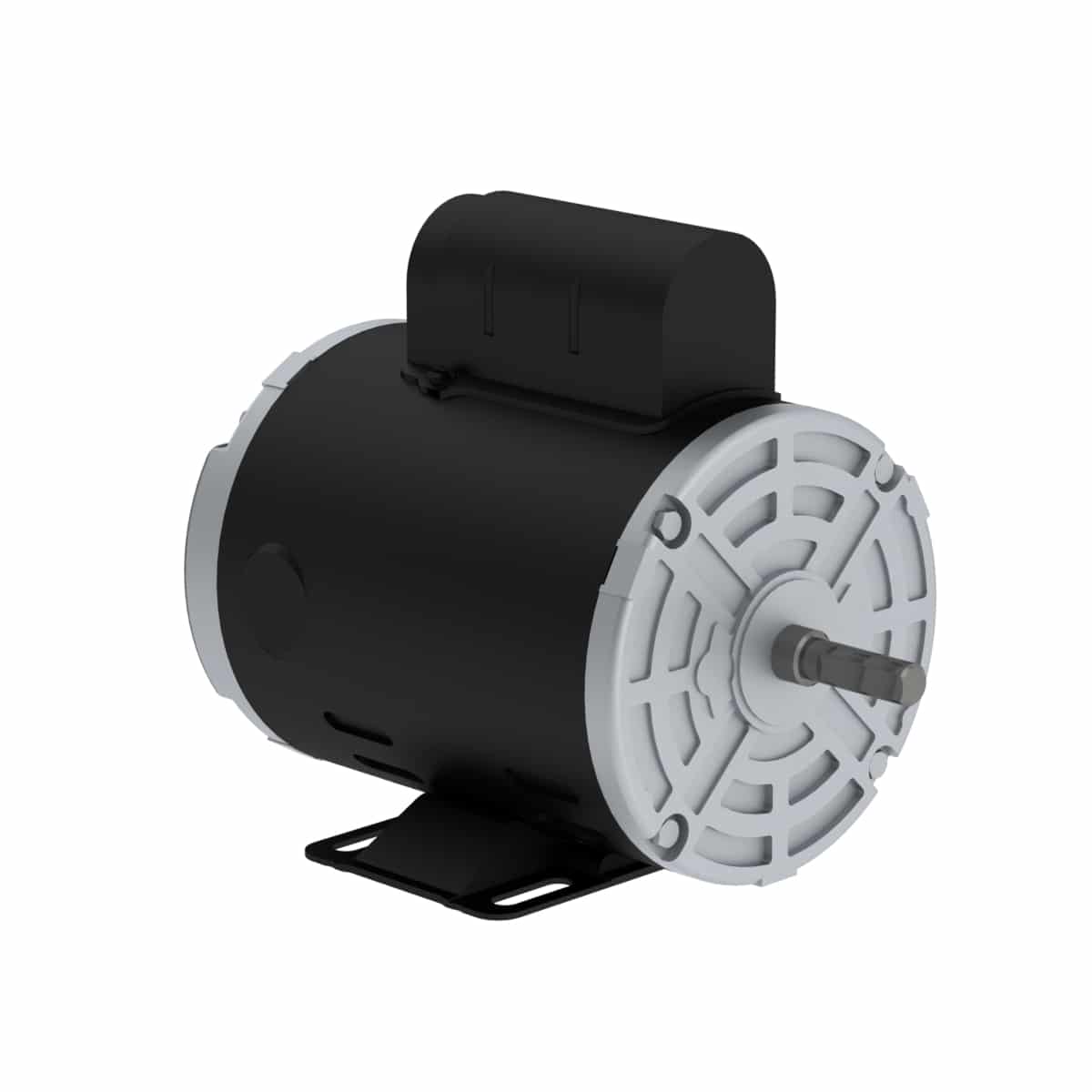

1.5HP General Purpose Motor, 3 Phase, 145T Frame, 1800 RPM, 208-230/460V, ODP Enclosure
$355.12
Product Information
Brand
WEG
Mfr #
00158OT3E145T-S
Wright's #
WEG 00158OT3E145T-S
Country of Origin
MEX
Specifications
C Dim
12.362"
Efficiency
NEMA Premium®
Enclosure
ODP
Frame
145T
HP
1.5 HP
HP2
1-1/2 HP
kW
1.1kW
Material
Rolled Steel
Number of Poles
4
Phase
3
Rated Current
2.1
Rated Voltage
208-230/460
RPM
1800
Description
All Cast Iron Construction, including Terminal Box and Fan Cover. Solid feet for reduced vibration levels and impact absorption. Optimized ventilation system for cooler operation and extended life. High Grade FC200 cast iron provides superior mechanical strength and heat dissipation. Four Bolt Conduit Cover with glued Neoprene Gasket. Impregnation Resin and magnet wire are insulation class H.
