WEG
1.5HP 3PH 182JM 6P ODP 1200 208-230/460V RS
Mfr # 00152OT3E182JM-S | Wright’s # WEG 00152OT3E182JM-S

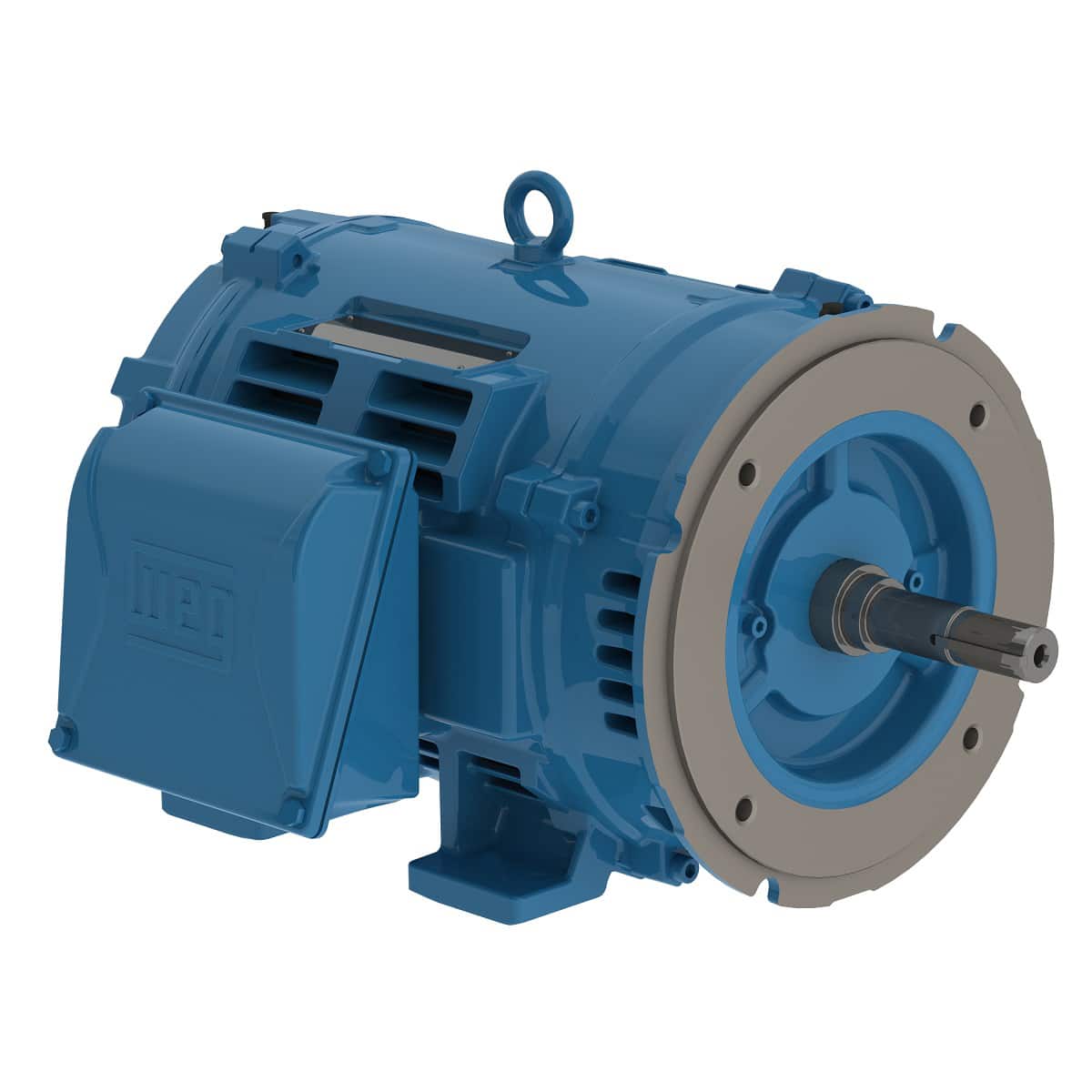

1.5HP Close-Coupled Pump Motor, 3 Phase, 182JM Frame, 1200 RPM, 208-230/460V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
WEG
Mfr #
00152OT3E182JM-S
Wright's #
WEG 00152OT3E182JM-S
Country of Origin
MEX
Specifications
C Dim
15.472"
Efficiency
NEMA Premium®
Enclosure
ODP
Frame
182JM
HP
1.5 HP
HP2
1-1/2 HP
kW
1.1kW
Material
Rolled Steel
Number of Poles
6
Phase
3
Rated Current
2.3
Rated Voltage
208-230/460
RPM
1200
Description
All Cast Iron Construction, including Terminal Box and Fan Cover. Solid feet for reduced vibration levels and impact absorption. Optimized ventilation system for cooler operation and extended life. High Grade FC200 cast iron provides superior mechanical strength and heat dissipation. Four Bolt Conduit Cover with glued Neoprene Gasket. Impregnation Resin and magnet wire are insulation class H.
