US Motors
1.5HP 3PH 143JM 3600 ODP 208-230/460V
Mfr # DJ32P1DM | Wright’s # USM DJ32P1DM

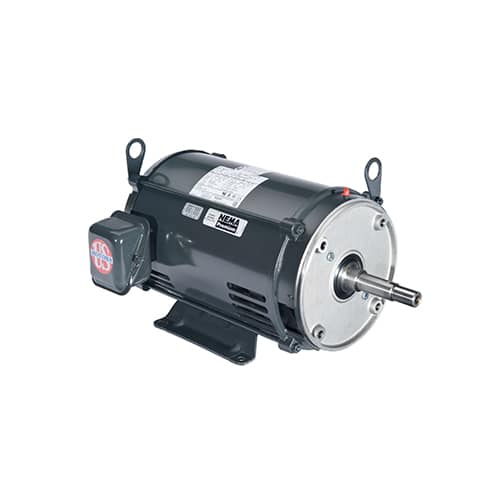

1-1/2HP Close Coupled Pump Motor, 3 Phase, 143JM Frame, 2 Poles, 3525 RPM, ODP Enclosure, 208-230/460V
Contact Us For Pricing
Product Information
Brand
US Motors
Mfr #
DJ32P1DM
Wright's #
USM DJ32P1DM
Country of Origin
MEX
Specifications
C Dim
15"
Electrical Type
Polyphase
Enclosure
ODP
Frame
143JM
Frequency
60/50 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
F
kW
1.12kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTED
Number of Poles
2
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
4.2-3.8/1.9
Rated Voltage
208-230/460V
RPM
3525
Service Factor
1.15
