US Motors

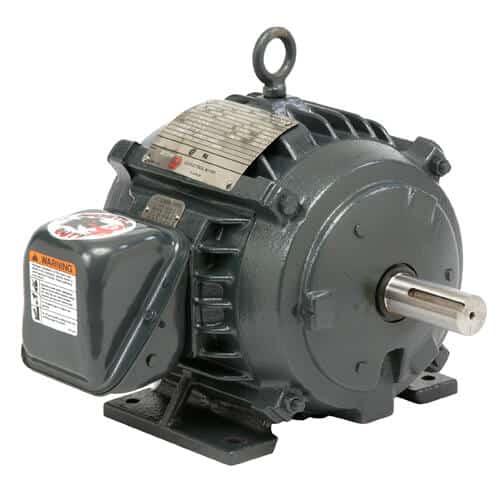

10HP 3PH 215T 1800 TEAO 230/460V SG CT
Mfr # CVW10V2B6 | Wright’s # USM CVW10V2B6
10HP Cooling Tower Motor, 3 Phase, 215T Frame, 4 Poles, 1770 RPM, TEAO Enclosure, 230/460V
$2,246.01
Product Information
Brand
US Motors
Mfr #
CVW10V2B6
Wright's #
USM CVW10V2B6
Country of Origin
MEX
Specifications
C Dim
17.1"
Electrical Type
Polyphase
Enclosure
TEAO
Frame
215T
Frequency
60Hz
HP
10 HP
HP2
10 HP
Insulation Class
F
kW
7.46kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTED
Number of Poles
4
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
25.7/12.8
Rated Voltage
230/460V
RPM
1770
Service Factor
1.15
