US Motors

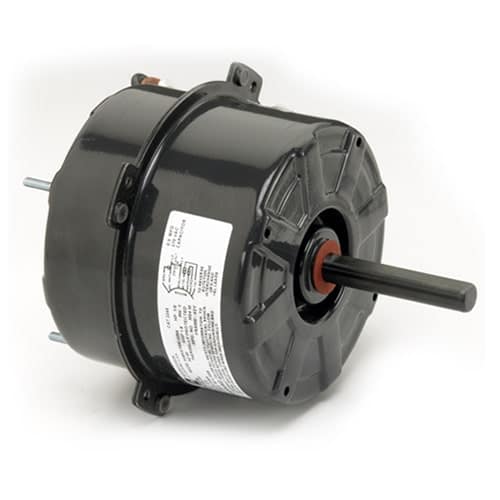

1/10HP PSC 5″ 1075 TEAO 208-230V 5uF CF
Mfr # 2243 | Wright’s # USM 2243
1/10HP Condenser Fan Motor, PSC, 42Y Frame, 1075 RPM, TEAO Enclosure, 208-230V, 5uF Capacitance
$154.09
Product Information
Brand
US Motors
Mfr #
2243
Wright's #
USM 2243
Country of Origin
MEX
Specifications
C Dim
6.8"
Electrical Type
PSC
Enclosure
TEAO
Frame
42Y
Frequency
60Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Material
Rolled Steel
Max Ambient
60°C
Mounting Type
STUD
Number of Speeds
1
Overload Protection
Automatic Reset
Phase
1
Rated Current
0.75
Rated Voltage
208-230V
RPM
1075
Service Factor
1
