7.5HP 3PH 213TC 1800 TEFC 460V CI WB
Mfr # HB7/54C | Wright’s # TEC HB7/54C

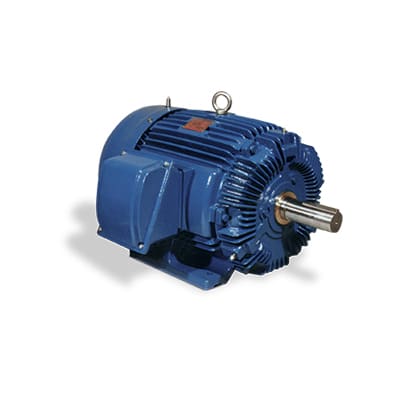

7.5HP Severe Duty Motor, 3 Phase, 213TC Frame, 1800 RPM, TEFC Enclosure, 460V
$1,533.66
Product Information
Specifications
Description
MAX-E2/841®
Features:
• Enclosure: Totally Enclosed Fan Cooled (IP55)
• Voltage: 460V Only
• Meets GM 7E-TA Specifications
• Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
• CSA Certified for Class I, Div. 2, Groups B, C, D – Temp Code T3 Minimum
• CSA Certified for Class II, Div. 2, Groups F & G – Temp Code T3 Minimum (Frame 444T and Above)
• Meets or Exceeds IEEE 841 Standards
• Meets IEEE 45 Marine Duty and ABS Design Assessment up to 500 HP (2, 4, 6 pole only)
• Extended Warranty – 60 Months from Date of Manufacture
• Class F Insulation
• Class B Temperature Rise
• NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
• Cast Iron Frame, End Brackets & Fan Cover and Main Conduit Box
• Grounding Terminal Inside Main Conduit Box with Additional Foot Grounding Provision
• Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted
• Designed for 50˚C Ambient Temperature
• Designed for 3300 ft. Elevation
• Bi-Directional Rotation; Except 2 Pole “Hybrid” and F# 5000 and Larger Ratings are Counter-Clockwise Facing the DE
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction for F# 140T – 449T
• Copper/Copper Alloy Rotor Construction for F# 5000 and Larger
• Epoxy Coated Rotor
• Paint System: 2 Part Epoxy
• Paint Color: Blue – Munsell 5PB 3/8
• High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM
• Automatic Grease Discharge Fittings for Horizontal or Vertical Mounting
• VBXX INPRO™ Seals are IP66 Rated and Installed on Both Ends
• Stainless Steel Nameplate and Hardware
• Stainless Steel Automatic Breather Drain
• Dual Column Design Nameplate as Standard (60/50 Hz)
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2 (4,5)
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
• Motors are U.L. Recognized, CSA Approved
• 3 Leads Only
• Dual Drilled Feet Available on Most Ratings – Longer Frames (e.g., 145T Drilled Also for 143T)
• Vibration Not to Exceed 0.08 Inches Per Second
• Noise Level Not to Exceed 85 dB(A) at 1 Meter Unloaded
