Marathon

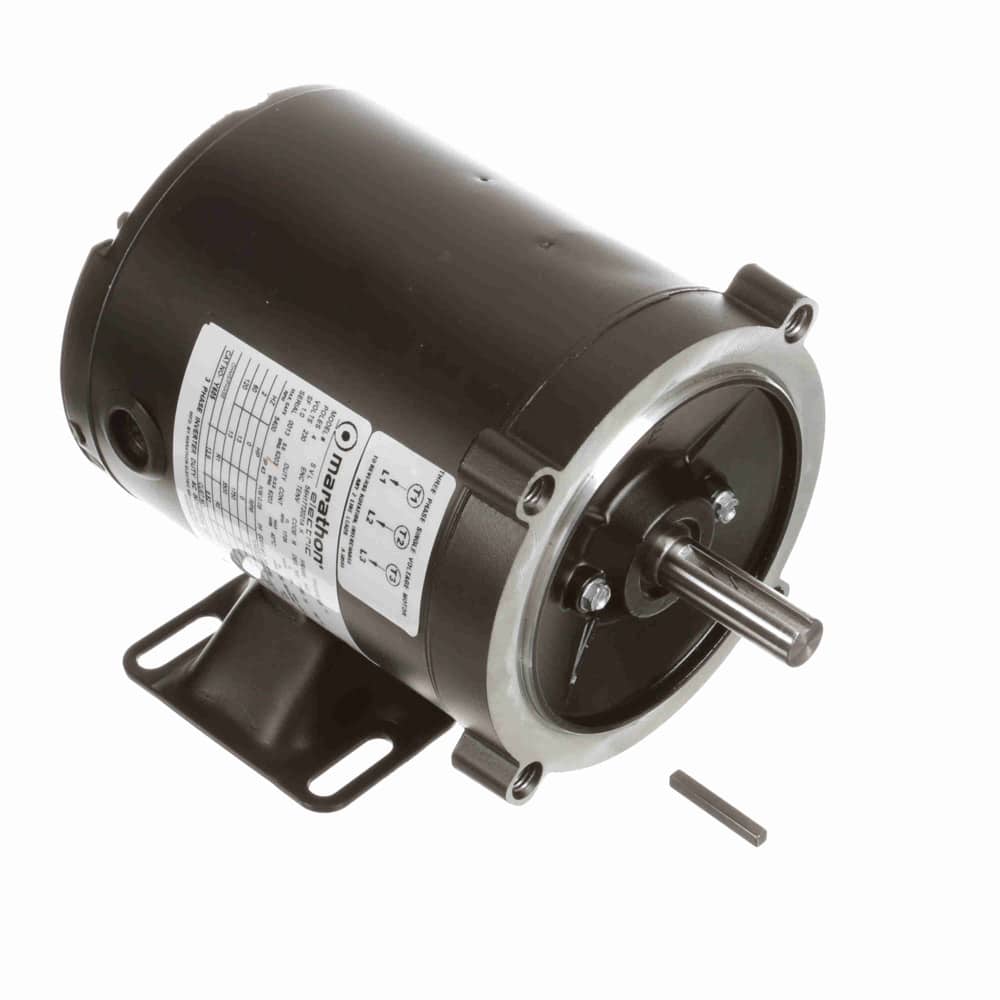

1/8HP 3PH 56C 4P TENV 1800 230V WB INV
Mfr # Y605 | Wright’s # MAR Y605
Contact Us For Pricing
Product Information
Brand Marathon
Sub-Brand microMAX™ Inverter Duty
Mfr # Y605
Wright's # MAR Y605
Country of Origin MEX
Specifications
C Dim 9.16"
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 65.5
Frame 56C
Frequency 60 Hz
HP 0.13 HP
HP2 1/8 HP
Insulation Class H
kW 0.09kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 0.66
Rated Voltage 230
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.625"
Speed 1725
Starting Method
