Marathon

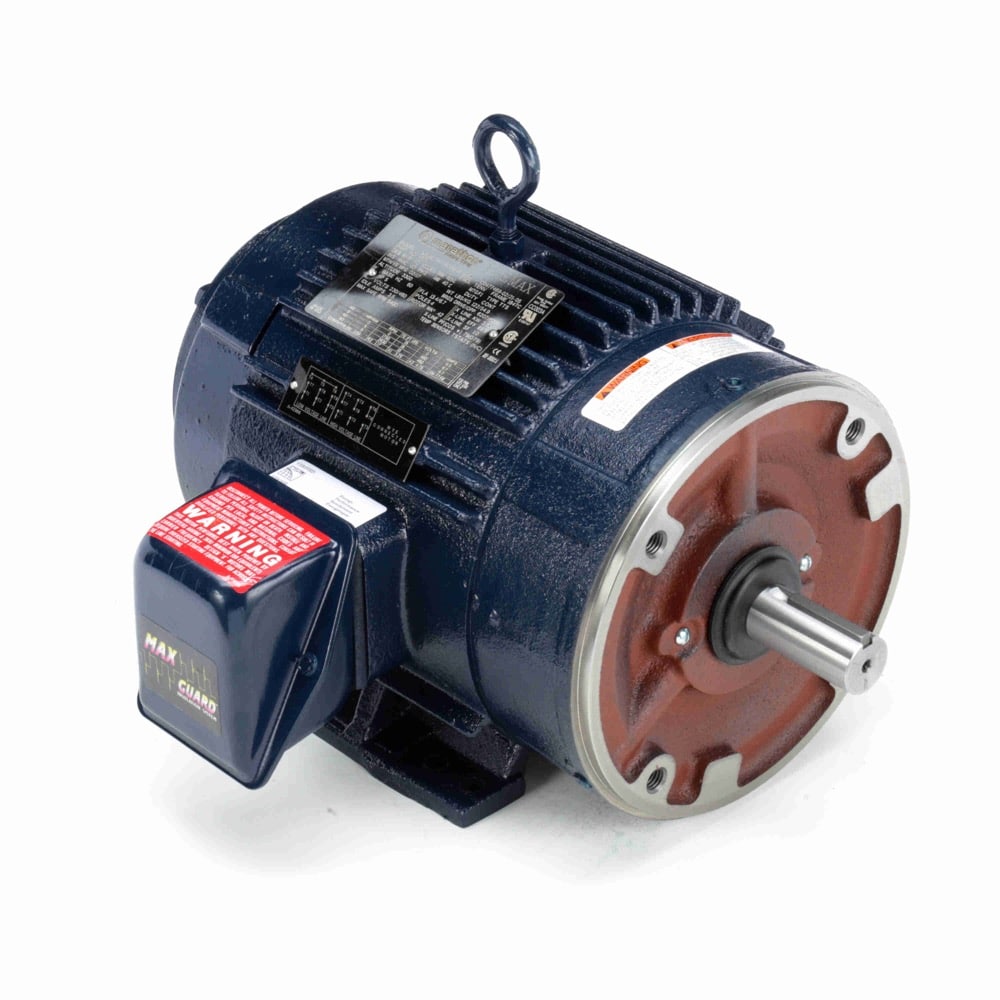

5HP 3PH 184TC 4P TENV 1750 230/460V TS WB INV
Mfr # Y564 | Wright’s # MAR Y564
Contact Us For Pricing
Product Information
Brand
Marathon
Sub-Brand
Blue Max® Inverter Duty
Mfr #
Y564
Wright's #
MAR Y564
Country of Origin
USA
Specifications
C Dim
17.68"
Electrical Type
Squirrel Cage Inverter Duty
Enclosure
ODP
Full Load Efficiency
88.5
Frame
184TC
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
H
kW
3.7kW
Material
Cast Iron
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
13.4/6.7
Rated Voltage
230/460
Rotation
Reversible
RPM
1750
Service Factor
1
Shaft Diameter
1.125"
Speed
1750
Starting Method
