Marathon

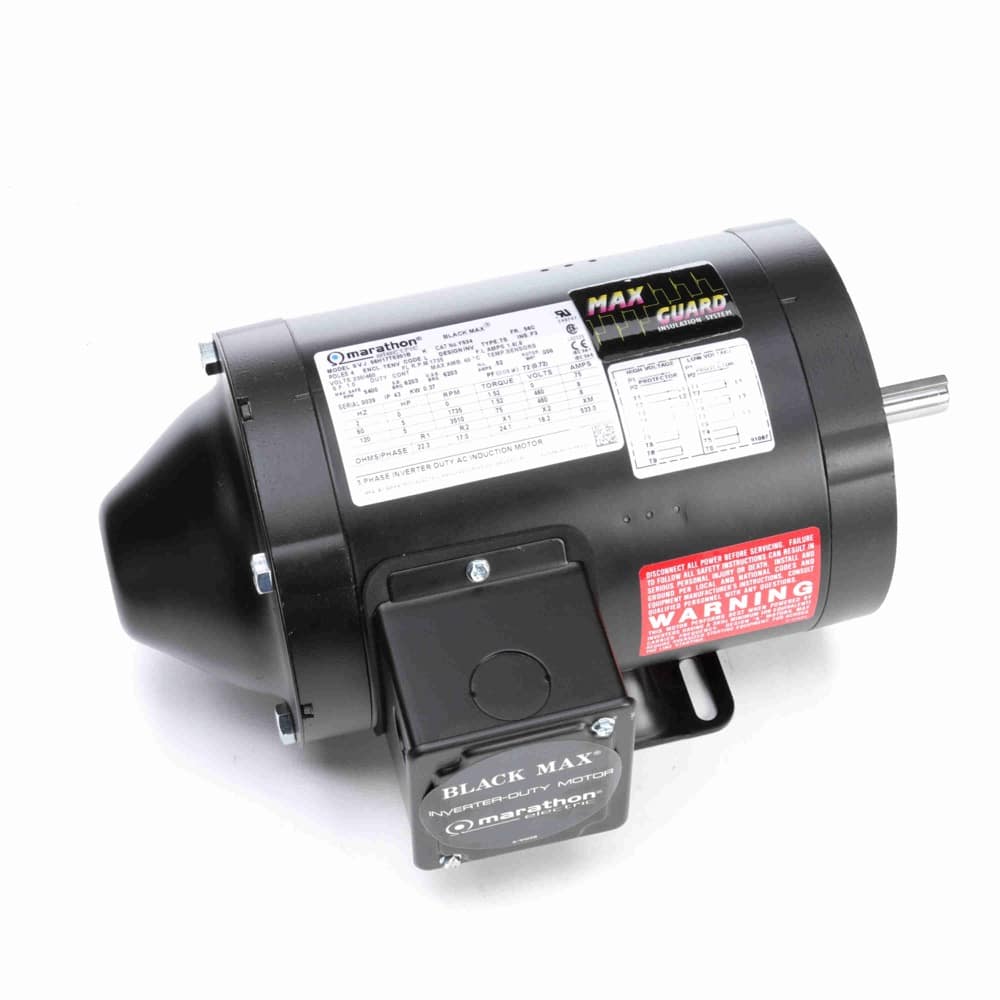

1/2HP 3PH 56C 4P TENV 1735 230/460V TS WB INV
Mfr # Y534 | Wright’s # MAR Y534
Contact Us For Pricing
Product Information
Brand
Marathon
Sub-Brand
Black Max® Inverter Duty
Mfr #
Y534
Wright's #
MAR Y534
Country of Origin
MEX
Specifications
C Dim
13.48"
Electrical Type
Squirrel Cage Inverter Duty
Enclosure
ODP
Full Load Efficiency
80
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Bolt-on Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
1.6/0.80
Rated Voltage
230/460
Rotation
Reversible
RPM
1735
Service Factor
1
Shaft Diameter
0.625"
Speed
1735
Starting Method
