Marathon

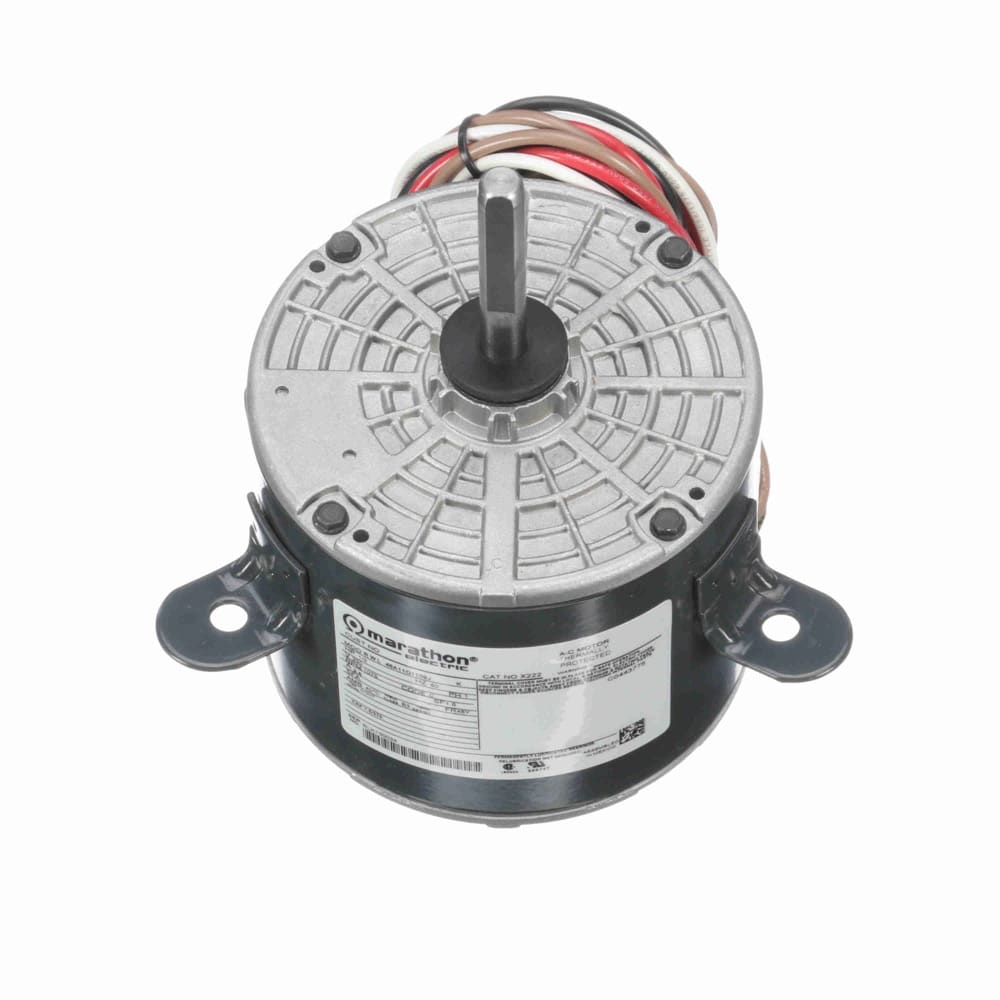

1/3HP PSC 48Y 6P OAO 2spd 1075 230V AOL CF
Mfr # X222 | Wright’s # MAR X222
1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 230V, ODP Enclosure, AOL Overload Protection
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
X222
Wright's #
MAR X222
Country of Origin
MEX
Specifications
C Dim
8.25"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Full Load Efficiency
66
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Three Lug Mount
Number of Poles
6
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
2.6
Rated Voltage
230
Rotation
Selective Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Multi-speed model, as noted, 3 lug mounting
Replaces Carrier Nos. HC41VE700 & 701, Emerson No.3225, Magnetek No. 536, & Century (A.O. Smith)No. OCB1036
Capacitor not included.
Ball bearings
1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 2 Speed, Permanent Split Capacitor, 230V, Open Air Over Enclosure, AOL Overload Protection
