Marathon

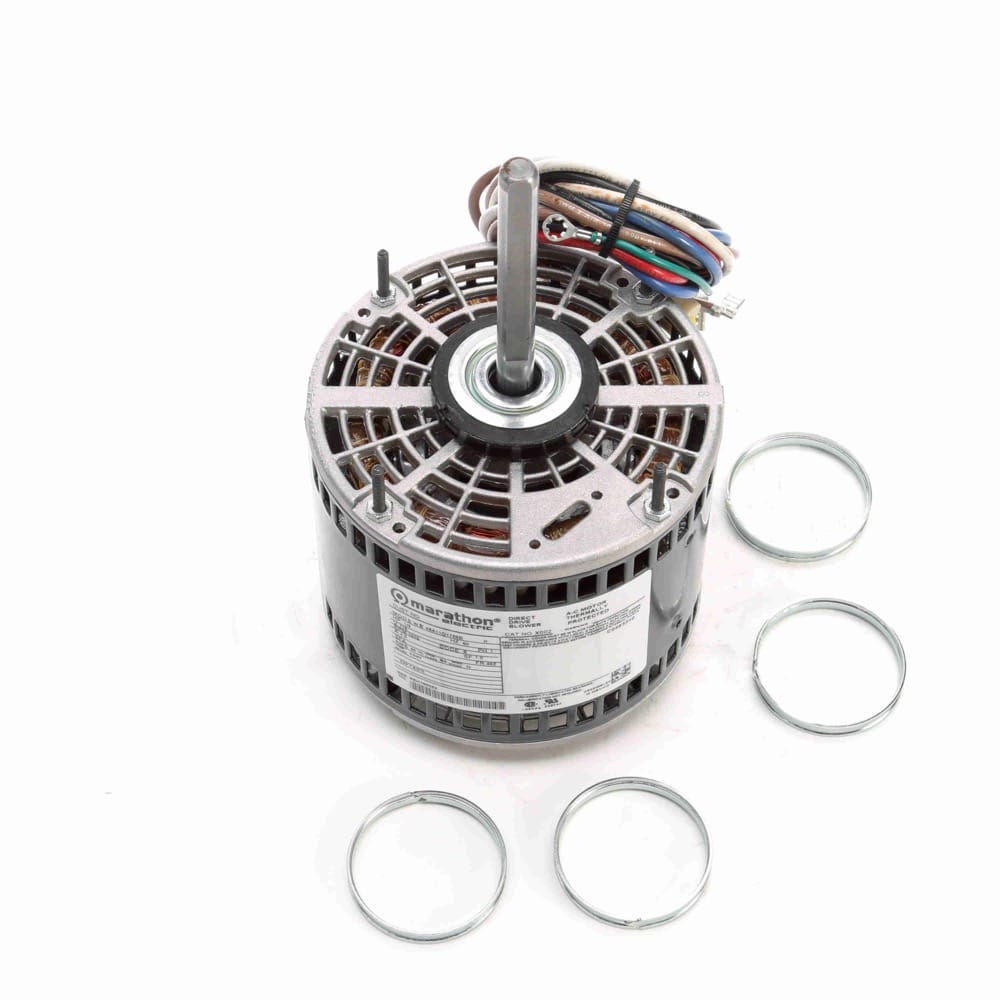

1/3HP PSC 48Z OAO 3spd 1075 115V BM

Name: 1/3HP PSC 48Z OAO 3spd 1075 115V BM
Brand: Marathon
SKU: 32616
Price: 166.92 USD
Availability: OutOfStock

Mfr # X002 | Wright’s # MAR X002

1/3HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure, AOL Overload Protection

Product Information

Brand Marathon

Mfr # X002

Wright's # MAR X002

Country of Origin MEX

Specifications

C Dim 9.75"

Electrical Type Permanent Split Capacitor

Enclosure ODP

Full Load Efficiency 57.5

Frame 48Z

Frequency 60 Hz

HP 0.33 HP

HP2 1/3 HP

Insulation Class B

kW 0.25kW

Material Rolled Steel

Max Ambient 40°C

Mounting Type Resilient Ring - Extended Studs

Number of Poles 6

Number of Speeds 3

Overload Protection Automatic

Phase 1

Rated Current 4.6

Rated Voltage 115

Rotation Selective Counterclockwise

RPM 1075

Service Factor 1

Shaft Diameter 0.5"

Speed 1075

Starting Method

Description

Automatic reset thermal(as noted) protector prevents overheating.
Shielded ball bearings extend the service life of the motor.
Class B insulation protects motor for a maximum temperature rating.
Suitable for indoor or outdoor applications(as noted).

1/3HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, Open Air Over Enclosure, AOL Overload Protection
