Marathon

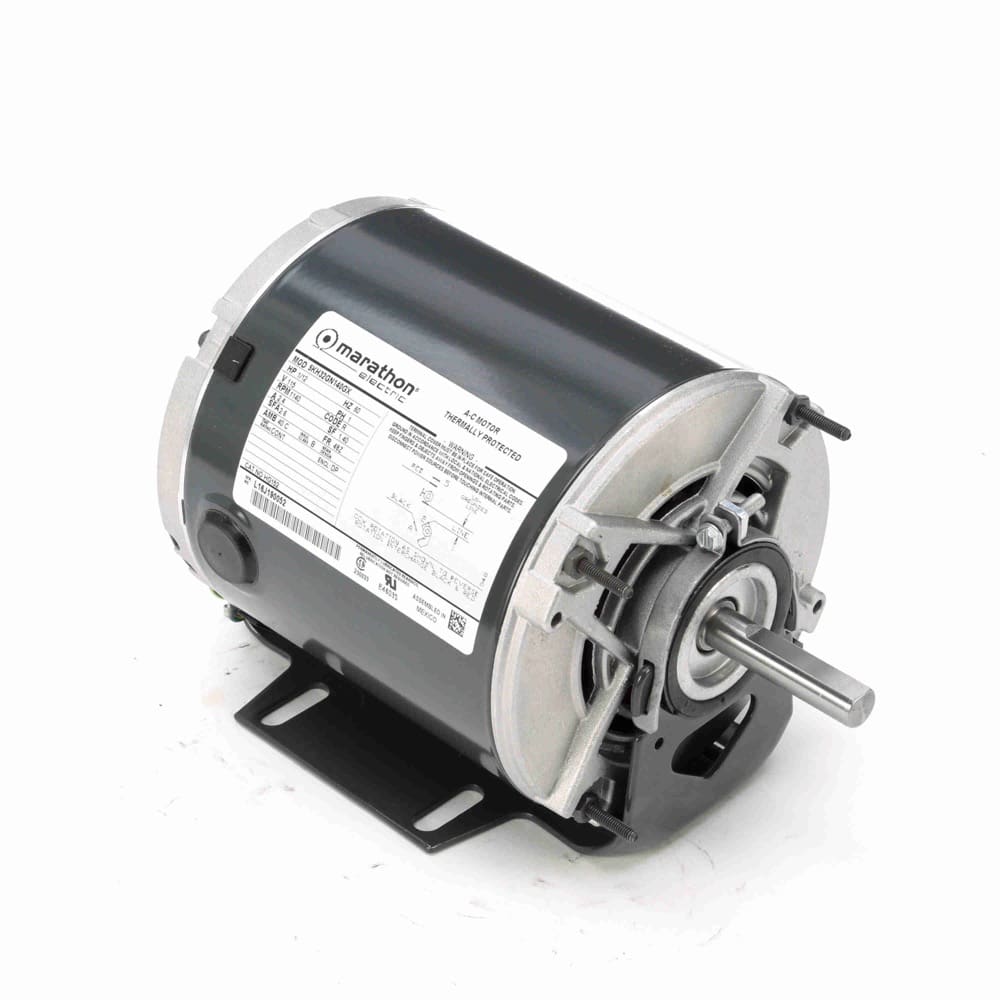

1/12HP SpP 48Z ODP 1140 115V BM
Mfr # HG152 | Wright’s # MAR HG152
1/9HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1140 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure, AOL Overload Protection
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
HG152
Wright's #
MAR HG152
Country of Origin
MEX
Specifications
C Dim
9.32"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
42
Frame
48Z
Frequency
60 Hz
HP
0.08 HP
HP2
1/9 HP
Insulation Class
B
kW
0.06kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.4
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
1140
Service Factor
1.4
Shaft Diameter
0.5"
Speed
1140
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
1/12HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1140 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure, AOL Overload Protection
