Marathon
1/2HP SpP 48Y 4P ODP 1725 115V AOL RB CARB
Mfr # H926 | Wright’s # MAR H926

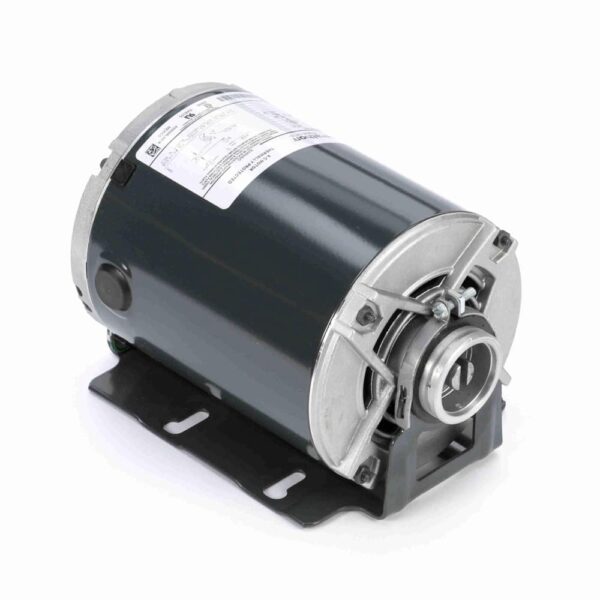

1/2HP Carbonator Pump Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure, AOL Overload Protection
$306.29
Product Information
Brand
Marathon
Mfr #
H926
Wright's #
MAR H926
Country of Origin
MEX
Specifications
C Dim
8.75"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
66
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
7.2
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.63"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Automatic reset thermal protector (as noted) protects against overload.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Interchangeable with most OEM designs.
1/2HP Carbonator Pump Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure, AOL Overload Protection
