Marathon
1/2HP SpP 48Y 4P ODP 1725 100-120/200-240V AOL RB CARB
Mfr # H684 | Wright’s # MAR H684

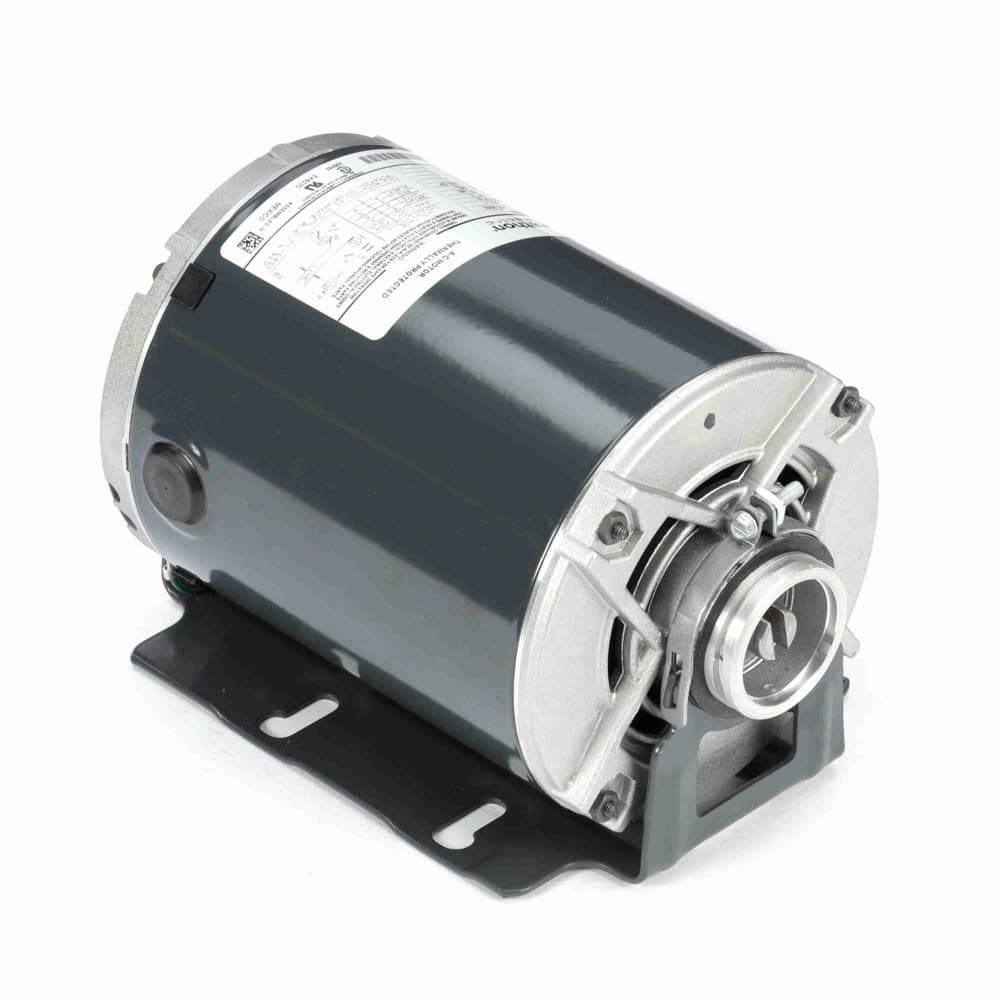

1/2HP Carbonator Pump Motor, 1 Phase, 48Y Frame, 1725/1425 RPM, 1 Speed, Split Phase, 100-120/200-240V, ODP Enclosure, AOL Overload Protection
$306.43
Product Information
Brand
Marathon
Mfr #
H684
Wright's #
MAR H684
Country of Origin
MEX
Specifications
C Dim
8.75"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
63.3
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
7.1-7.2,3.4-3.6
Rated Voltage
100-120/200-240
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.63"
Speed
1725/1425
Starting Method
