Marathon

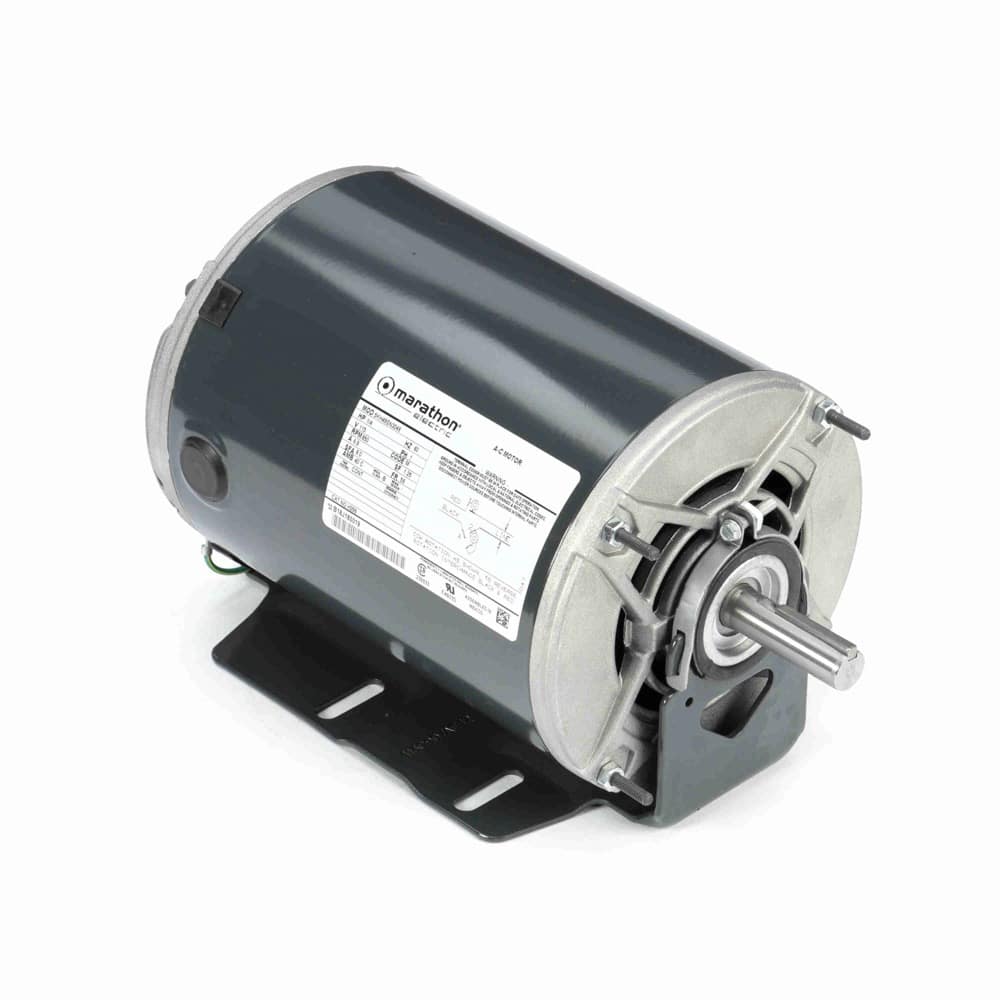

1/4HP SpP 56 ODP 850 115V BM
Mfr # H296 | Wright’s # MAR H296
1/4HP Fan & Blower Motor, 1 Phase, 56 Frame, 850 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
H296
Wright's #
MAR H296
Country of Origin
MEX
Specifications
C Dim
12.01"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
43.3
Frame
56
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
8
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
6.9
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
850
Service Factor
1.25
Shaft Diameter
0.63"
Speed
850
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
1/4HP Fan & Blower Motor, 1 Phase, 56 Frame, 850 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure
