Marathon

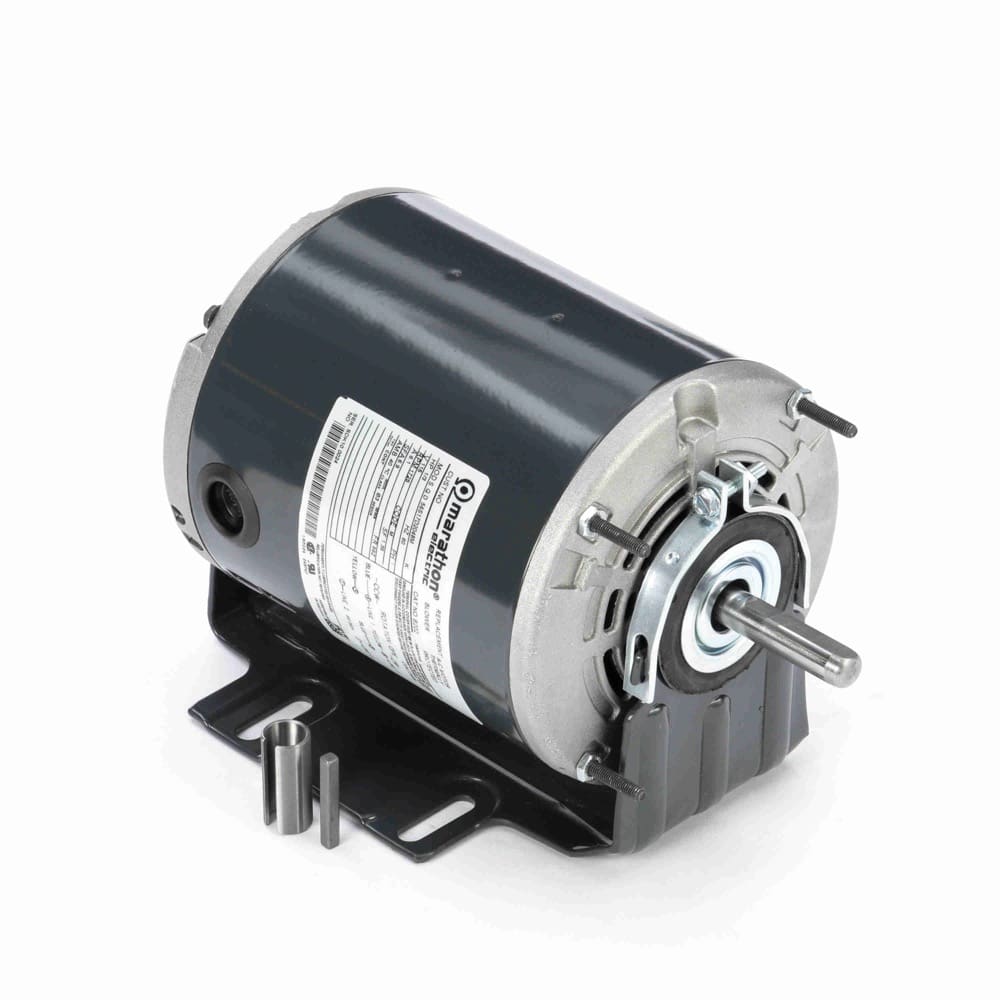

1/3HP SpP 56Z ODP 1725 115V AOL RB
Mfr # B202 | Wright’s # MAR B202
1/3HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure, AOL Overload Protection
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
B202
Wright's #
MAR B202
Country of Origin
MEX
Specifications
C Dim
9.72"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
62
Frame
56Z
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base - Extended Studs
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
6.1
Rated Voltage
115
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
Ball bearings
3/4″ thru-bolts, shaft end
1/2″ shaft with 5/8″ adapter and key
Heavy gauge steel frame and base
1/3HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure, AOL Overload Protection
