Leeson

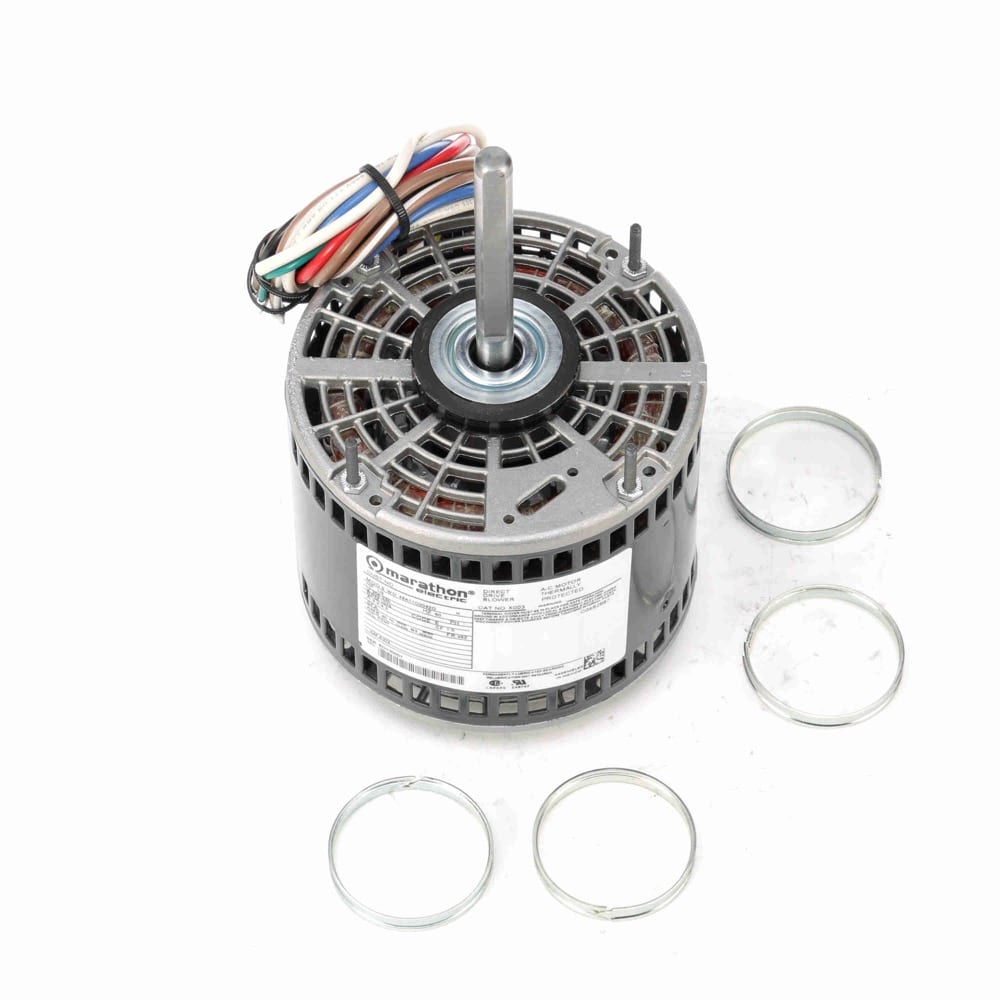

0.33HP 1PH 48Z 6P OAO 3spd 1075 PSC 208-230V AOL
Mfr # X003 | Wright’s # LSN X003
1/3HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
X003
Wright's #
LSN X003
Country of Origin
MEX
Specifications
C Dim
9.75"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Full Load Efficiency
59.5
Frame
48Z
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Ring - Extended Studs
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3.3-3.3
Rated Voltage
208-230
Rotation
Selective Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Automatic reset thermal(as noted) protector prevents overheating.
Shielded ball bearings extend the service life of the motor.
Class B insulation protects motor for a maximum temperature rating.
Suitable for indoor or outdoor applications(as noted).
