Leeson

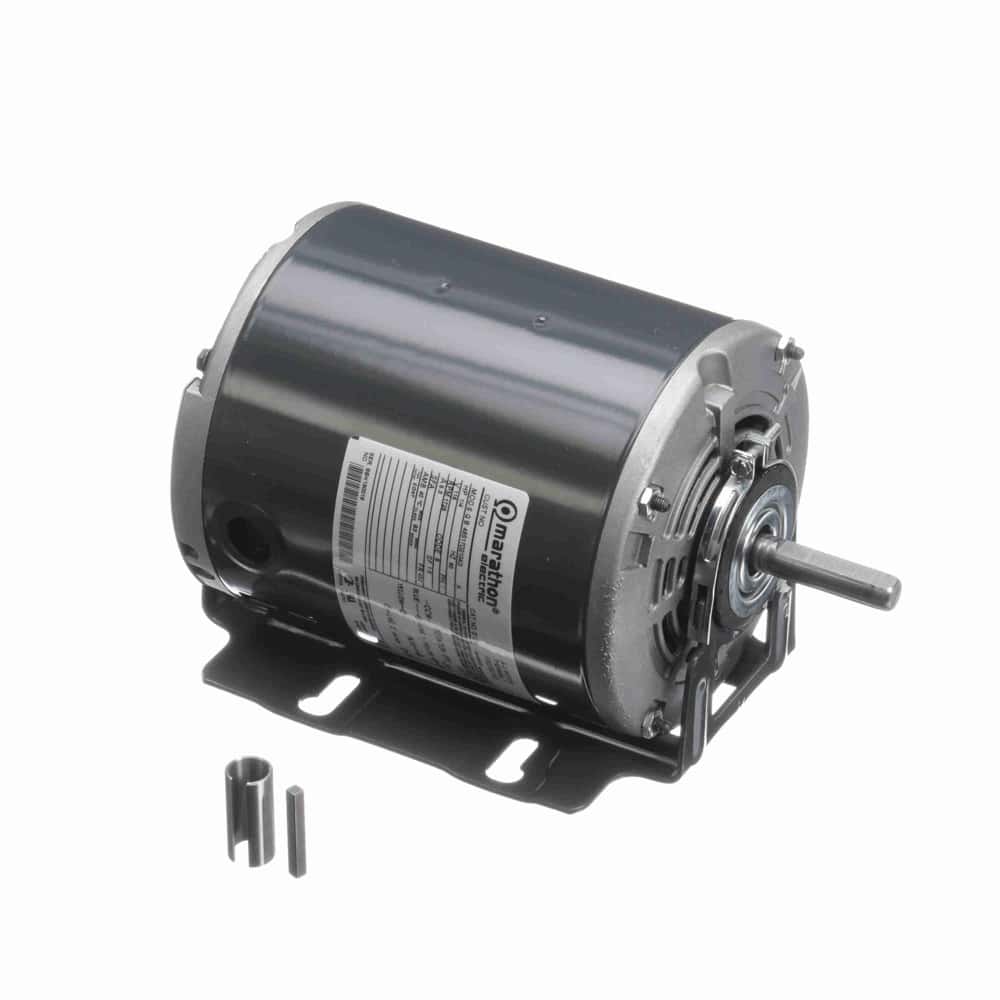

0.25HP 1PH 48Z 4P DP 1725 SpP 115V AOL
Mfr # S126 | Wright’s # LSN S126
1/4HP General Purpose Motor, 1 Phase, 48Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # S126
Wright's # LSN S126
Country of Origin MEX
Specifications
C Dim 9.72"
Electrical Type Split Phase
Enclosure DP
Full Load Efficiency 52.5
Frame 48Z
Frequency 60 Hz
HP 0.25 HP
HP2 1/4 HP
Insulation Class B
kW 0.19kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 5.3
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.5"
Speed 1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
