Leeson
0.13HP 30 TENV 31 180V DC Gear
Mfr # M1125038.00 | Wright’s # LSN M1125038.00

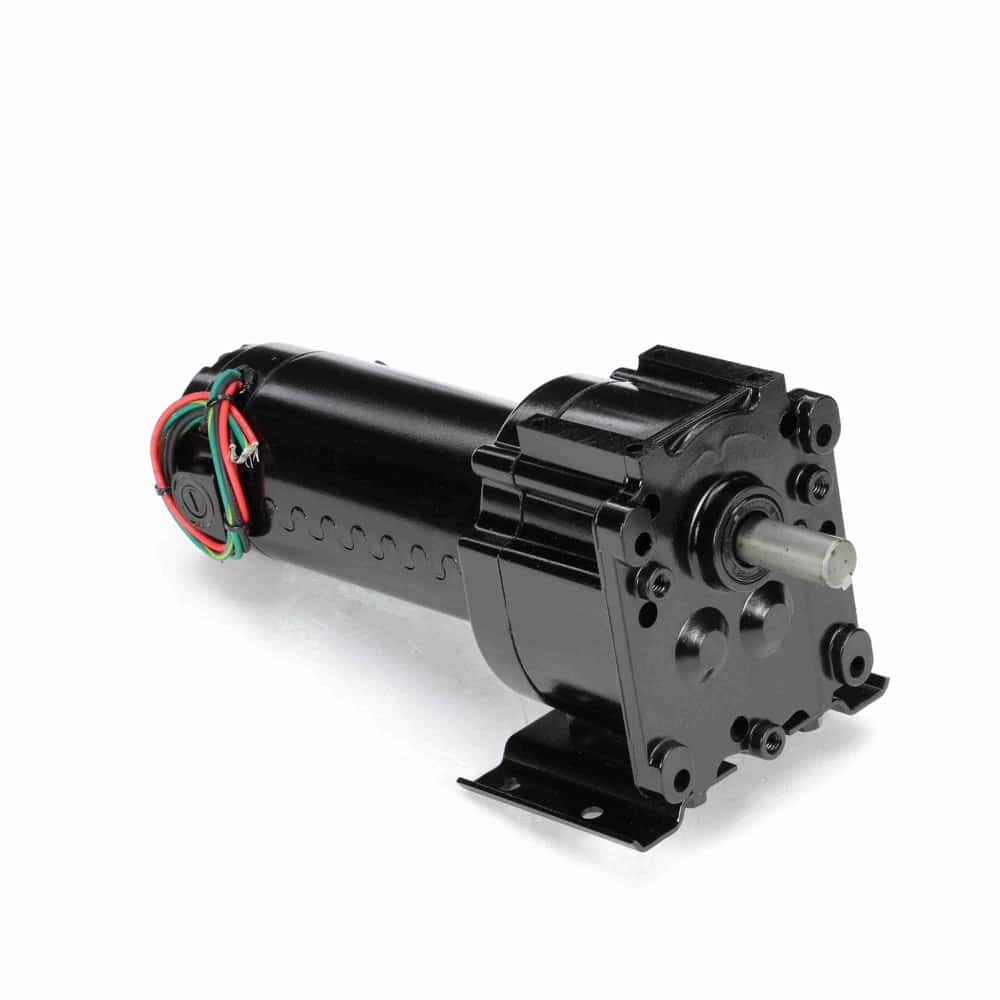

1/8HP Parallel Shaft DC Gear Motor, Phase, 30 Frame, 31 RPM, Speed, Three Phase, 180V, TENV Enclosure
$700.04
Product Information
Brand
Leeson
Mfr #
M1125038.00
Wright's #
LSN M1125038.00
Country of Origin
USA
Specifications
C Dim
11.45"
Electrical Type
Three Phase
Enclosure
TENV
Full Load Efficiency
60.4
Frame
30
HP
0.13 HP
HP2
1/8 HP
Insulation Class
F
kW
0.1kW
Max Ambient
40°C
Mounting Type
Special
Overload Protection
No Protection
Rated Current
0.66
Rated Voltage
180
Rotation
Reversible
RPM
31
Service Factor
1
Shaft Diameter
0.625"
Speed
31
Description
Performance matched for continuous duty service.
Precision machined in-line steel gears.
Lubrication is permanent semi-fluid grease, reducing possibility of leakage.
Output shafts have needle bearings to handle high load capacities.
