Leeson

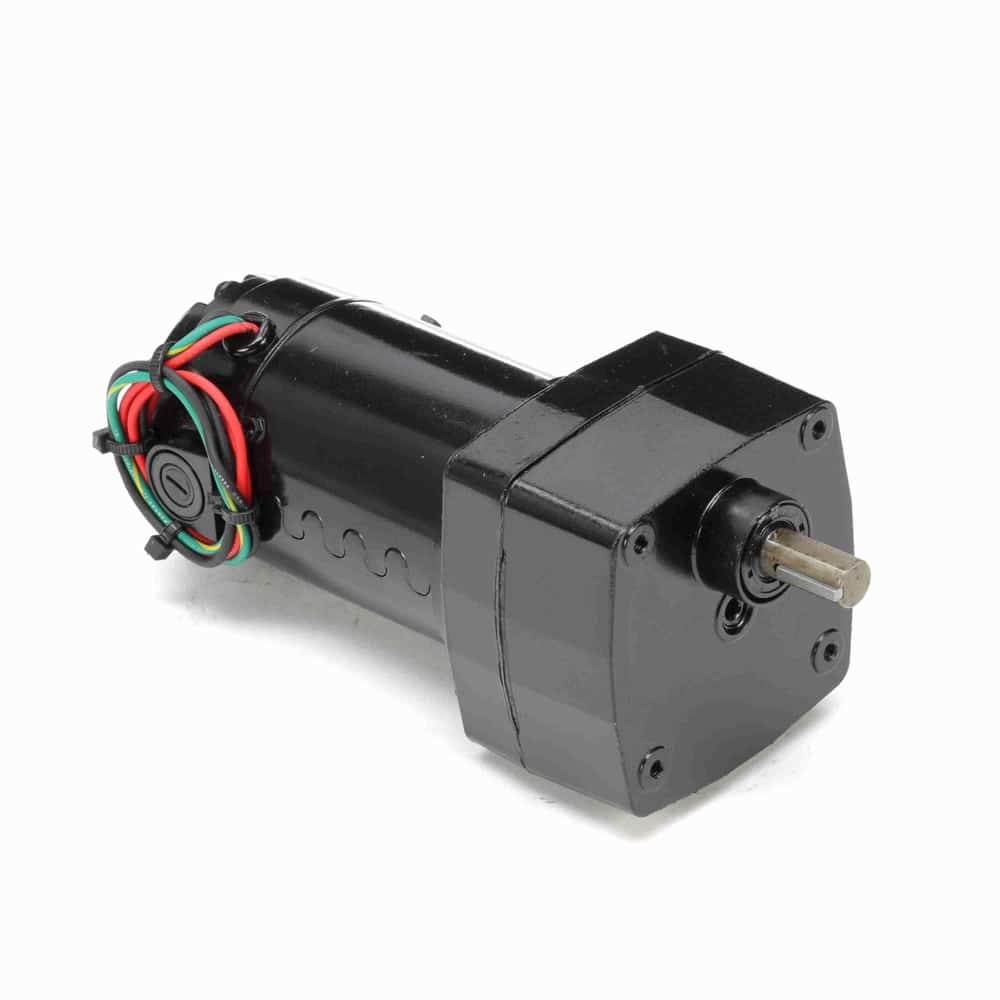

0.06HP 30 TENV 100 90V DC Gear
Mfr # M1125004.00 | Wright’s # LSN M1125004.00
1/15HP Parallel Shaft DC Gear Motor, Phase, 30 Frame, 100 RPM, Speed, Three Phase, 90V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
M1125004.00
Wright's #
LSN M1125004.00
Country of Origin
USA
Specifications
C Dim
8.74"
Electrical Type
Three Phase
Enclosure
TENV
Full Load Efficiency
56.3
Frame
30
HP
0.06 HP
HP2
1/15 HP
Insulation Class
F
kW
0.04kW
Max Ambient
40°C
Mounting Type
Special
Overload Protection
No Protection
Rated Current
0.80
Rated Voltage
90
Rotation
Reversible
RPM
100
Service Factor
1
Shaft Diameter
0.5"
Speed
100
Description
Performance matched for continuous duty.
Output shafts have needle bearings to handle high load capacities.
Lubrication is permanent semi-fluid grease, reducing possibility of leakage.
Precision machined in-line steel gears.
Optional conduit box and PZ gearmotor mounting brackets available.
