Leeson
0.50HP 3PH 56C 4P TEFC 1725 208-230/460V NB
Mfr # K254 | Wright’s # LSN K254

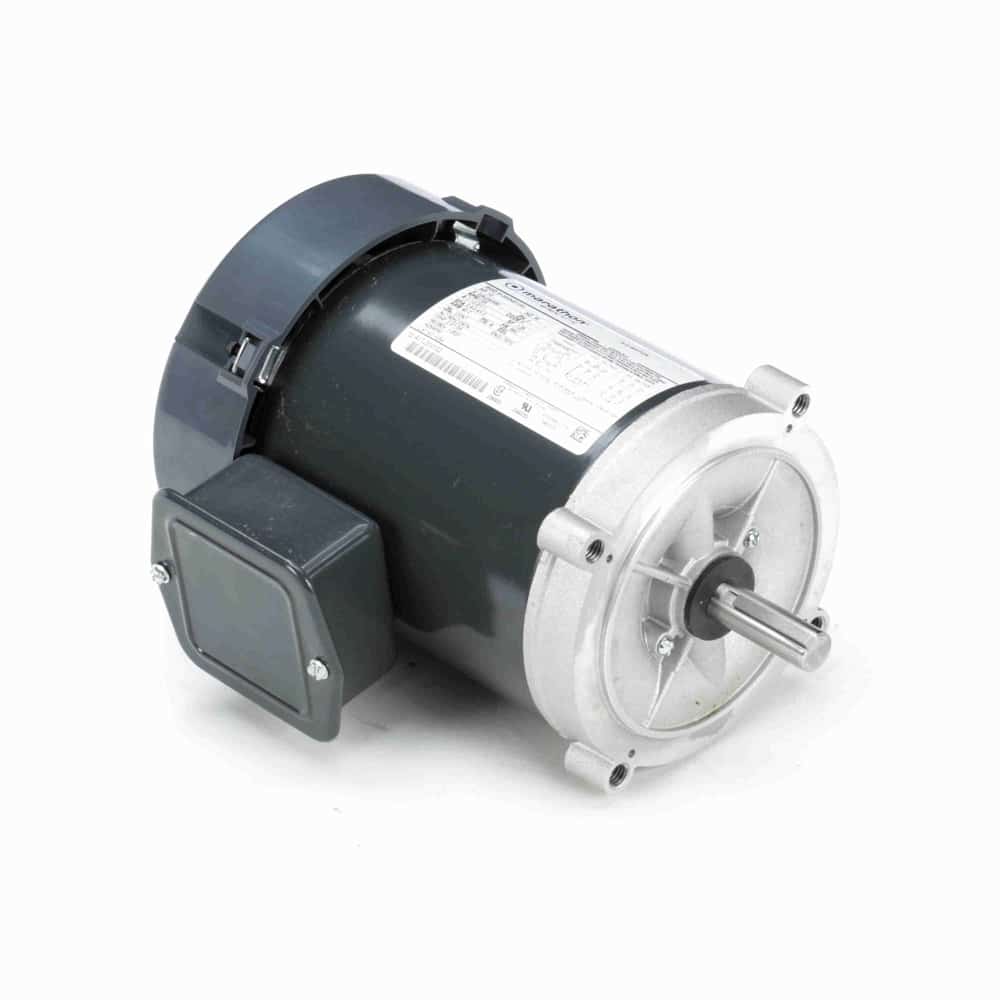

1/2HP General Purpose Motor, 3 Phase, 56C Frame, 1725 RPM, 1 Speed, Three Phase, 208-230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
K254
Wright's #
LSN K254
Country of Origin
MEX
Specifications
C Dim
10.93"
Electrical Type
Three Phase
Enclosure
TEFC
Full Load Efficiency
76.1
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2.1-2.2,1.1
Rated Voltage
208-230/460
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.63"
Speed
1725
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Continuous duty cycle design allows maximum operation at the rated power specifications.
Class B or F Insulation protects motor for a maximum temperature rating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
