Leeson

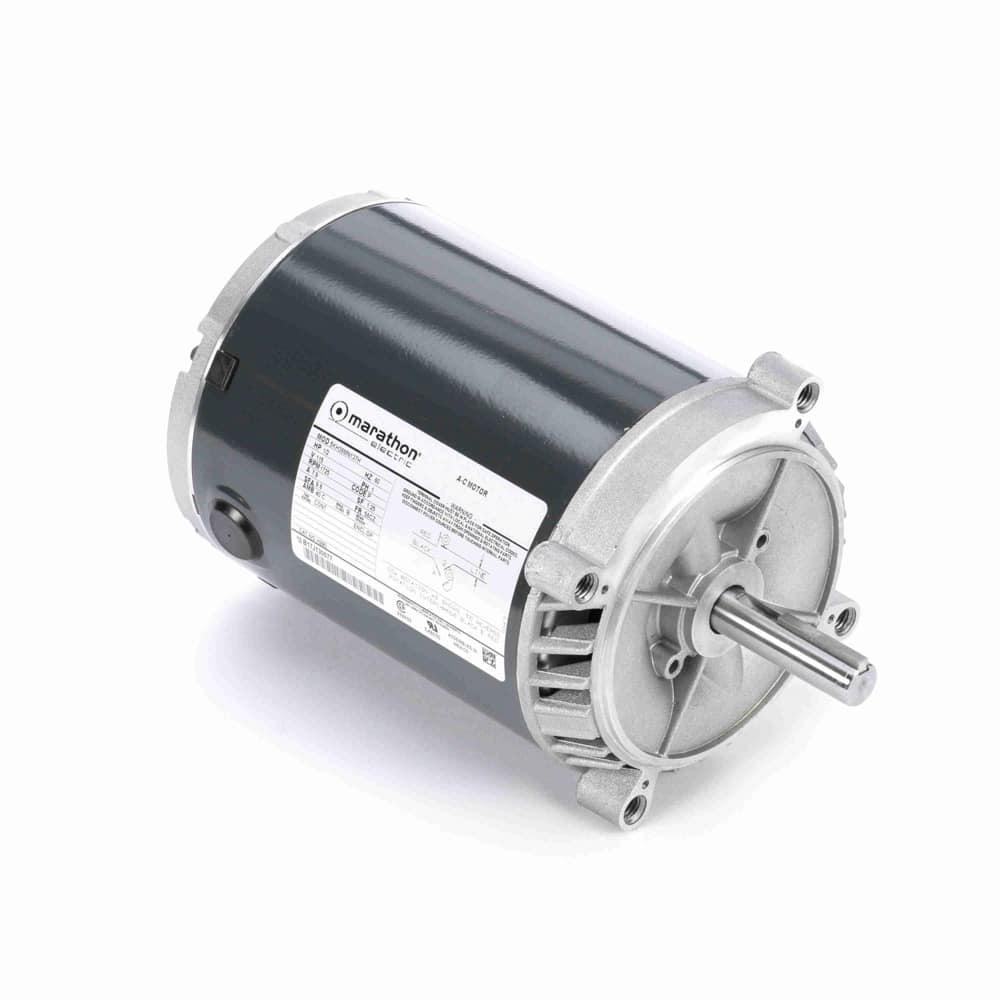

1/4HP 1PH 48 ODP 1800 115/230V AOL RB
Mfr # G1115 | Wright’s # LSN G1115
0.25HP General Purpose Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230VV, Drip Proof Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
G1115
Wright's #
LSN G1115
Country of Origin
MEX
Specifications
C Dim
9.57"
Electrical Type
Capacitor Start Induction Run
Enclosure
Drip Proof
Full Load Efficiency
55
Frame
48
Frequency
60
HP
0.25 HP
HP2
0.25 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
AOL
Phase
1
Rated Current
5.2,2.6
Rated Voltage
115/230V
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
