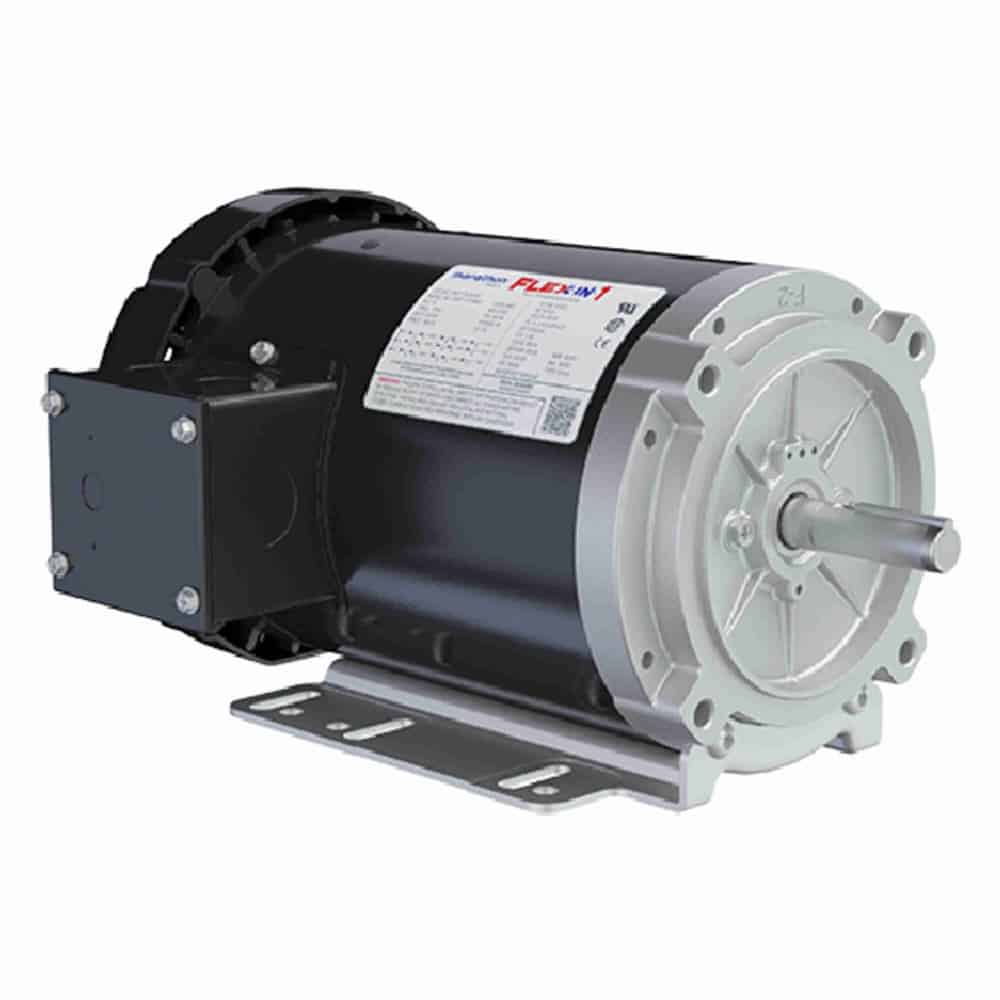

1.50HP 3PH 56HC 2P TEFC 3450 230/460V WB
Leeson

1.50HP 3PH 56HC 2P TEFC 3450 230/460V WB

Mfr # FX32BK002 | Wright’s # LSN FX32BK002

1-1/2HP General Purpose Motor, 3 Phase, 56HC Frame, 3450 & 2850 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, TEFC Enclosure

$431.17

Product Information

Brand Leeson
Sub-Brand FLEX-IN-1™
Mfr # FX32BK002
Wright's # LSN FX32BK002
Country of Origin MEX

Specifications

Electrical Type Squirrel Cage Inverter Rated
Enclosure TEFC
Full Load Efficiency 84
Frame 56HC
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class F
kW 1.1kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Bolt-on Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 4/2 & 4.6/2.3
Rated Voltage 230/460
Rotation Reversible
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625"
Speed 3450 & 2850
Starting Method

Description

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** – Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
Inverter duty capable – 10:1 CT for TEFC – 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
*** Kits sold separately. Light assembly required.
