Leeson

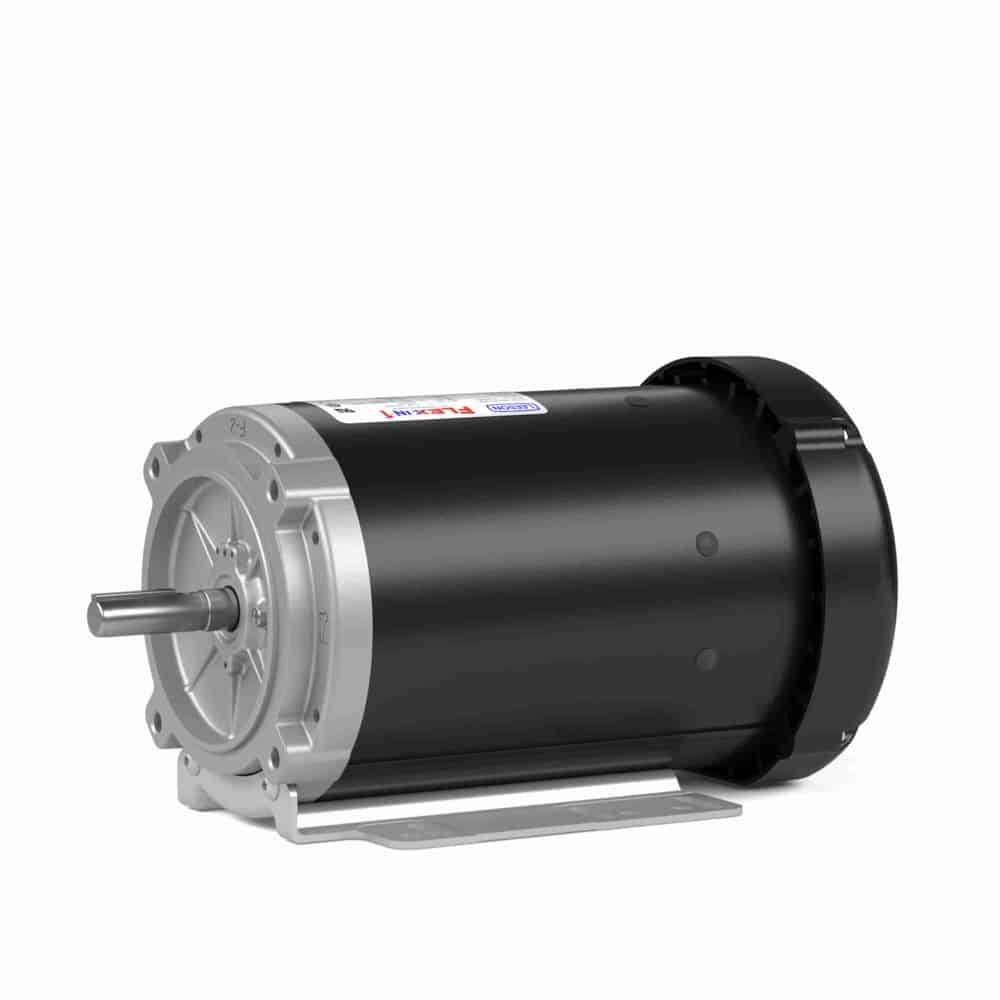

0.50HP 3PH 56HC 4P DP 1725 208-230/460V WB
Mfr # FX12BK003 | Wright’s # LSN FX12BK003
1/2HP General Purpose Motor, 3 Phase, 56HC Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Inverter Rated, 208-230/460V, DP Enclosure
$362.11
Product Information
Brand
Leeson
Sub-Brand
FLEX-IN-1™
Mfr #
FX12BK003
Wright's #
LSN FX12BK003
Country of Origin
MEX
Specifications
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
DP
Full Load Efficiency
78.2
Frame
56HC
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Bolt-on Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.8/.9 & 1.6/.8
Rated Voltage
208-230/460
Rotation
Reversible
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
Description
One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** – Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
Inverter duty capable – 10:1 CT for TEFC – 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
*** Kits sold separately. Light assembly required.
