Leeson

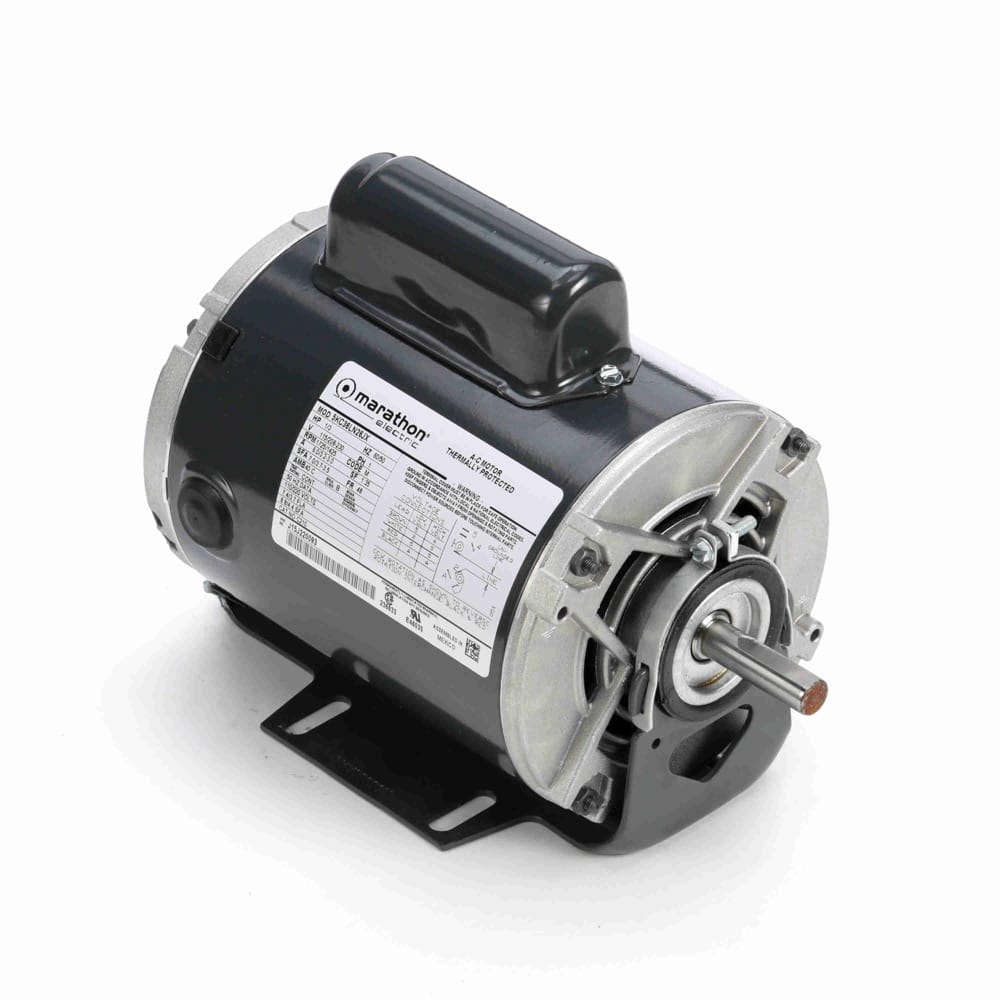

1/3HP 1PH 48 4P ODP 1800 115/208-230V AOL RB
Mfr # C210 | Wright’s # LSN C210
0.33HP General Purpose Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230VV, Drip Proof Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
C210
Wright's #
LSN C210
Country of Origin
MEX
Specifications
C Dim
10"
Electrical Type
Capacitor Start Induction Run
Enclosure
Drip Proof
Full Load Efficiency
59.5
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
0.33 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
AOL
Phase
1
Rated Current
6.0,3.2-3.0
Rated Voltage
115/208-230V
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
