Leeson

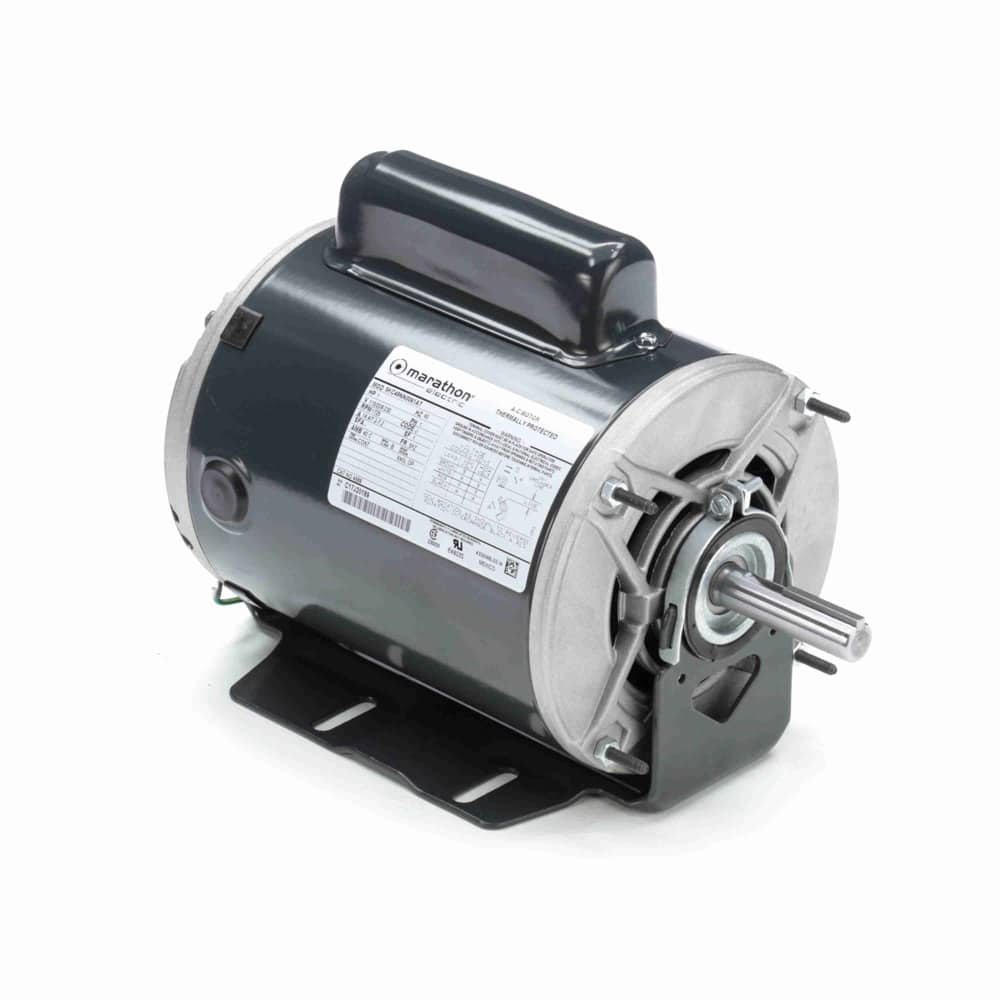

1HP 1PH 56Z 4P TEAO 1725 115/208-230V AOL
Mfr # 4688 | Wright’s # LSN 4688
1HP Severe Duty Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Squirrel Cage Inverter Rated, 115/208-230V, TEAO Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
4688
Wright's #
LSN 4688
Country of Origin
MEX
Specifications
C Dim
10.77"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
TEAO
Full Load Efficiency
69
Frame
56Z
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
14.4,7.2-7.2
Rated Voltage
115/208-230
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.63"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
