Leeson

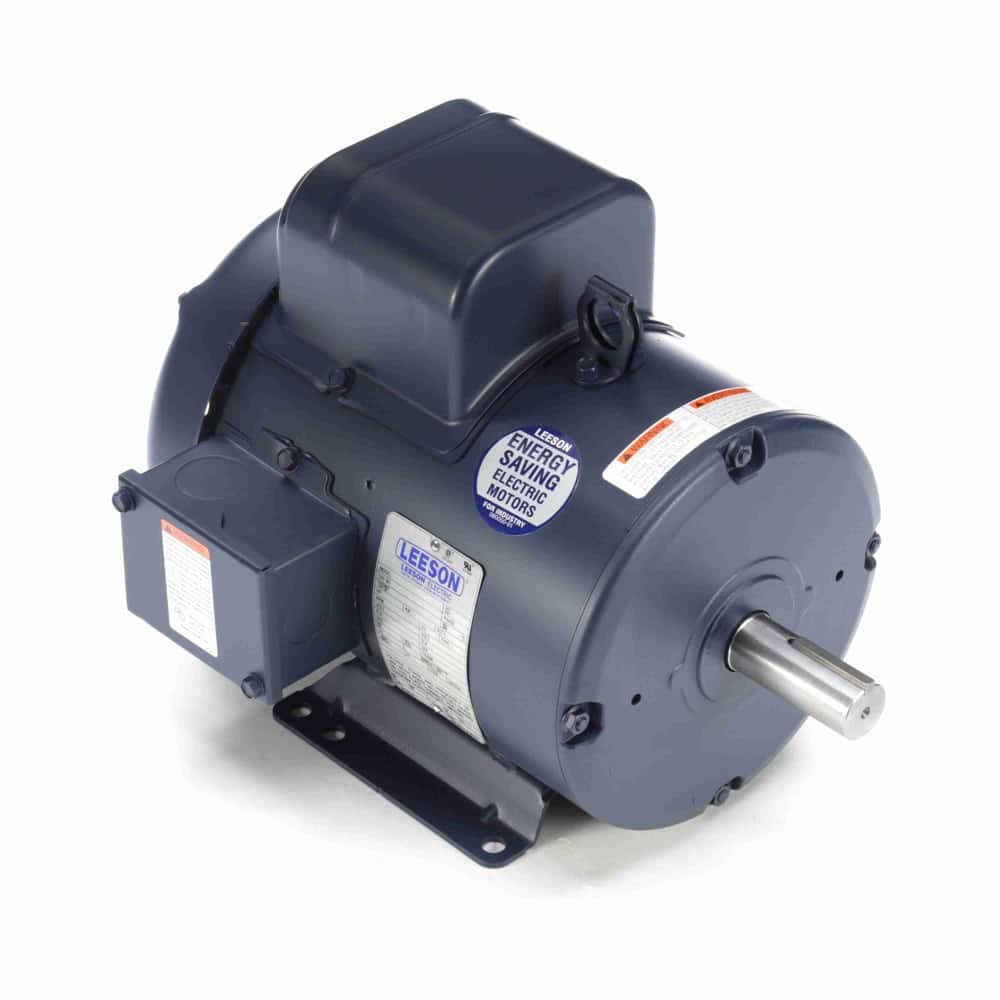

3HP 1PH 182T 2P TEFC 3500 115/208-230V
Mfr # 131637.00 | Wright’s # LSN 131637.00
3HP General Purpose Motor, 1 Phase, 182T Frame, 3500 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/208-230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
131637.00
Wright's #
LSN 131637.00
Country of Origin
MEX
Specifications
C Dim
14.96"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
TEFC
Full Load Efficiency
80
Frame
182T
Frequency
60 Hz
HP
3 HP
HP2
3 HP
Insulation Class
F
kW
2.2kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
26.8/14.4-13.4
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
3500
Service Factor
1.15
Shaft Diameter
1.125"
Speed
3500
Starting Method
Description
Durable rolled steel construction
NEMA Design B performance
Double shielded ball bearings
Continuous duty
UL recognized component listing and CSA certified
