Leeson

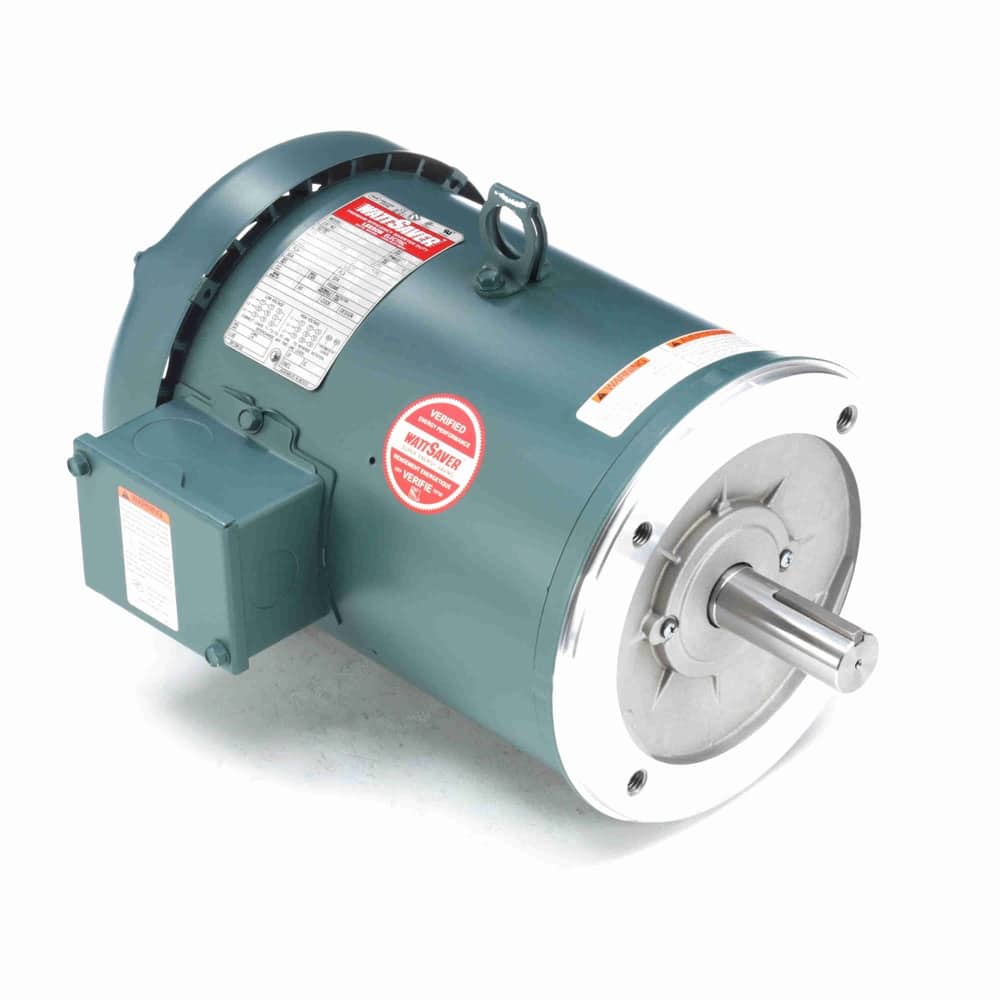

5HP 3PH 184TC 4P TEFC 1760 230/460V TS NB
Mfr # 131501.00 | Wright’s # LSN 131501.00
5HP General Purpose Motor, 3 Phase, 184TC Frame, 1760 & 1450 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure, Thermostat Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
131501.00
Wright's #
LSN 131501.00
Country of Origin
MEX
Specifications
C Dim
14.97"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
89.5
Frame
184TC
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
F
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
12.6/6.3 & 15.2/7.6
Rated Voltage
230/460
Rotation
Reversible
RPM
1760
Service Factor
1.15
Shaft Diameter
1.125"
Speed
1760 & 1450
Starting Method
Description
Premium efficient ratings
Inverter-rated; Continuous duty
Class F insulation system – 140 frame and higher
Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
Dynamically balanced rotors
Torques exceed NEMA performance standards; UL recognized and CSA certified
