Leeson

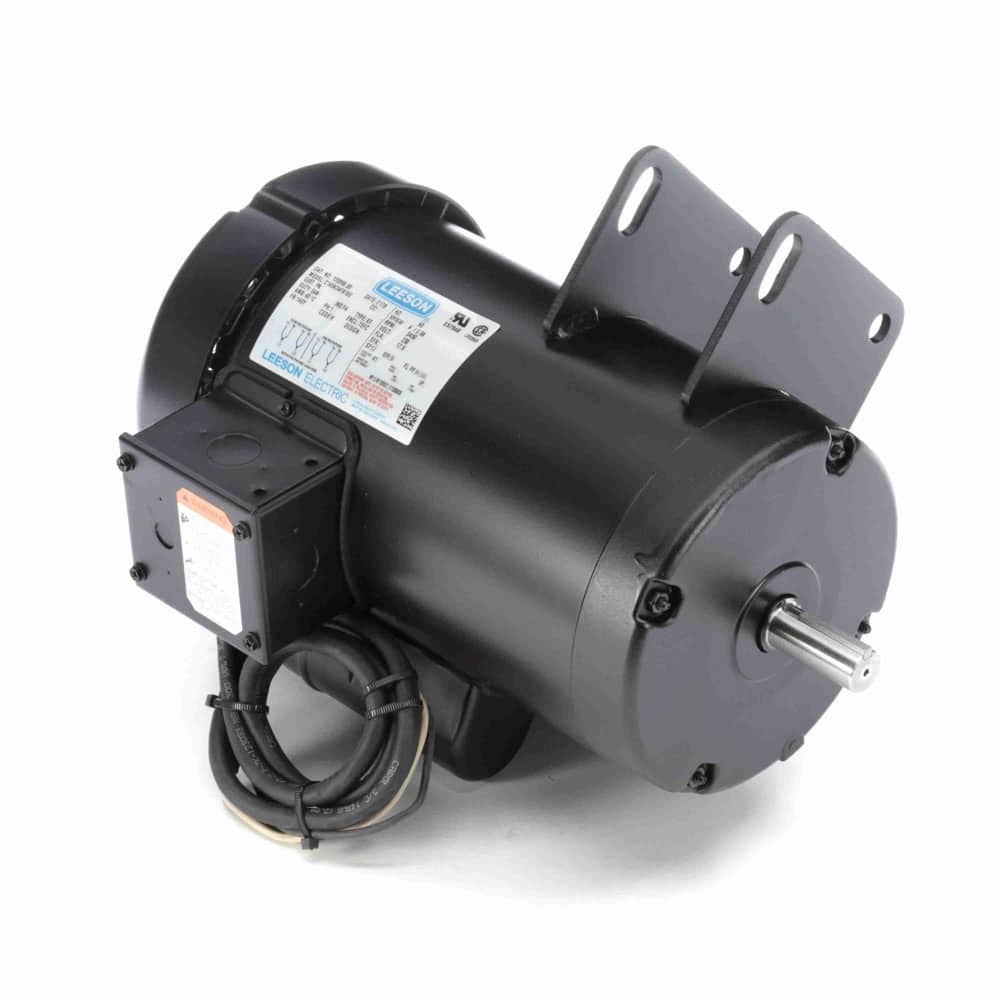

4HP 1PH 145Y 2P TEFC 3450 230V Saw
Mfr # 120998.00 | Wright’s # LSN 120998.00
4HP Saw Motor, 1 Phase, 145Y Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
120998.00
Wright's #
LSN 120998.00
Country of Origin
USA
Specifications
C Dim
12.86"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
TEFC
Full Load Efficiency
84
Frame
145Y
Frequency
60 Hz
HP
4 HP
HP2
4 HP
Insulation Class
F
kW
3kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
17.6
Rated Voltage
230
Rotation
Fixed Counterclockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.75"
Speed
3450
Starting Method
Description
Motor pivots on rod for belt tensioning
Extra high breakdown torques for maximum cutting power
3/4” Dia. Shaft, 1-3/4” long with keyway
Includes 54 inch cord
